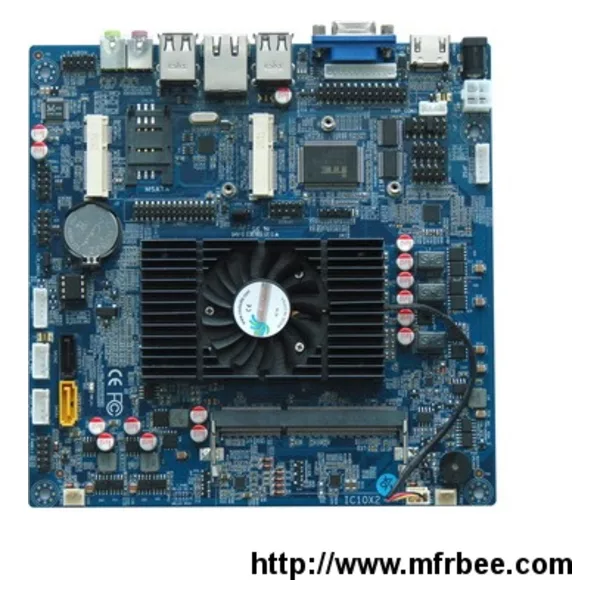

2044-2 ITX-HCM10X21A,Mini ITX,Intel Celeron C1037 Embedded Motherboard

Minimum Order
1
Packaging
N/A
Delivery
15 Days

CPU Intel Celeron C1037U 1.8Ghz Low consumption processor( TDP13W,667Mhz)

Chipset Single chip: Intel NM70

Memory 1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 8GB

Graphics Onboard Intel GMA 3150, support DirectX 9.0C

Audio Onboard Realtek ALC662 HD audio chip

LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.

Storage Interface 1x SATA2.0 Hard disk connector,1x SATA3.0 Hard disk connector

Expansion Slots 2x Mini PCIE solt

USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)

Internal

I/O Connectors 1 x 4-pin DC main power supply

2 x SATA headers

1 x CPU fan header

1 x front panel header

1 x F_Audio header

2 x USB 2.0 headers

1 x Clear CMOS header

1x LPT header

2 x COM headers

1 x VGA_H header

1 x 24bit LVDS header

1 x LVDS_INVERT header

Back Panel

Connectors

1 x VGA port

1X HDMI port

4 x USB 2.0 port

1 x RJ-45 ports

1 x audio 2 Jacks( Line-out, MIC or Line-in)

1x DC port

I/O Controller 1 x IT8782F

BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE

Form Factor Mini-ITX 170 x 170mm

Work Environmental

Working conditional temperature -15~55°C

Working conditional humidity 10%~80% relative humidity, non-condensing

Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
