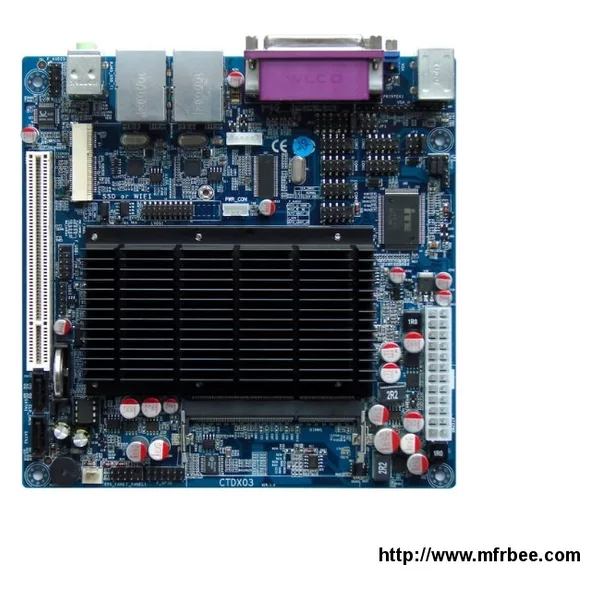

Motherboards,2045-1 ITX-HCM25D62B Intel Atom D2550 CPU

Place Of Origin
China
Minimum Order
1
Main Feature
7USB,6COM,24Bit LVDS+VGA+VGA_header+HDMI
Packaging
N/A
Delivery
15 Days
CPU Intel Atom D2550 1.86Ghz Low consumption processor( TDP13W,667Mhz)
Chipset Single chip: Intel NM10
Memory 1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 4GB
Graphics Onboard Intel GMA3600 support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 2x SATA2.0 Hard disk connector
Expansion Slots 1 x PCI slot,1x MINI PCIE slot
USB Support 7 PCS USB 2.0 Porst (3 pcs need extend)
Internal I/O Connectors
1 x 24-pin ATX main power supply
2 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
6 x COM headers
1x GPIO header
1 x VGA_H header
1 x 24bit LVDS header
1 x LVDS_INVERT header
Back Panel Connectors
1 x PS2 mouse and keyboard ports
1 x VGA port
1 x HDMI port
4 x USB 2.0 ports
2 x RJ-45 ports
1X LPT
1 x audio 2 Jacks( Line-out, MIC or Line-in)
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
