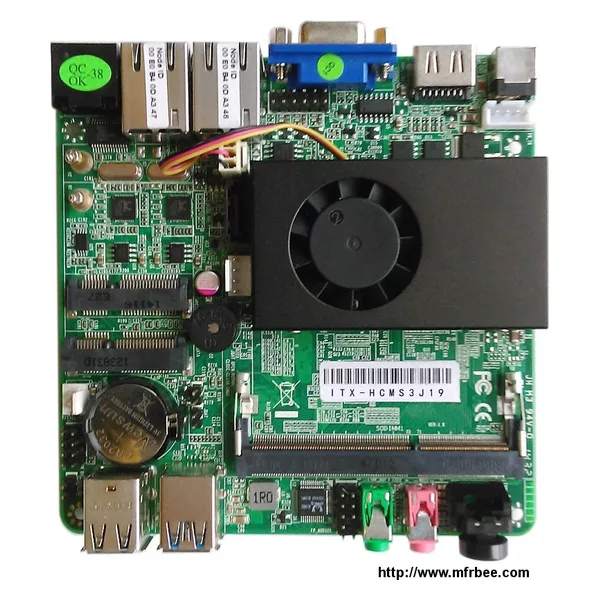

Motherboards,2032-1&2 ITX-HCMS3J19 & HCMS3J18 Intel RJ1900 /J1800 CPU

Place Of Origin
Minimum Order
15 Days
CPU Intel RJ1900 /J18002.0Ghz Low consumption processor
Chipset Single chip: Intel RJ1900 / J1800
Memory 1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 8GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 1 x SATA2.0 Hard disk connector
Expansion Slots 2x MINI PCIE slots
USB Support 2 PCS USB 2.0 Porst &2 PCS USB 3.0 Porst
Internal I/O Connectors 1x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
1 x Clear CMOS Header
1 x VGA_H header
1x PW_IN
Back Panel Connectors
1 x VGA port
1 xHDMI port
2 x USB 2.0 ports
2 x USB 3.0 ports
2 x RJ-45 ports
1x DC port
2x LINE out&MIC ports
1x RJ45-COM port

I/O Controller 1 x IT8772F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor 120 x 120mm
Work Environmental
Working conditional temperature -20~60°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
