PVC Coated Chain Link Fence

PVC Coated Chain Link Fence Fabric Available in Black, Forest Green, and Dark Brown Colors

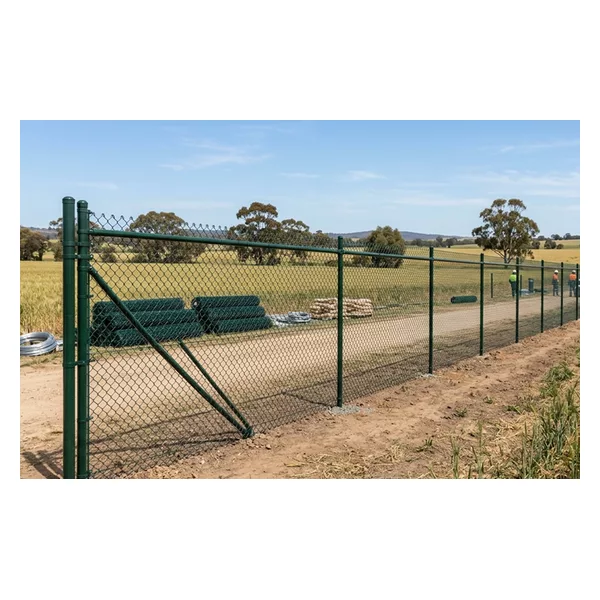

PVC Chain Link Fence System (300 Linear Meters) Project Scope

• Fence installation covering 300 linear meters.
• Fence Type: PVC coated galvanized chain link fence system in green color.
• Mesh Specification: Diamond pattern chain link mesh.
• Wire Diameter: 3.0 mm wire diameter.
• Fence Height: 1.8 m fence height.
• Roll Length: 25 m per roll.
• Post Spacing: Posts installed at 2 m intervals.
• Accessories: Fence posts and fittings for installation system.

Galvanized and PVC Coated Chain Link Fence Export Specifications for 20GP Container

• Material: Galvanized steel core wire with PVC coating
• Colors: Green (RAL6005)
• Mesh Opening Sizes: 60 mm × 60 mm, 65 mm × 65 mm
• Wire Diameter: 2.0 mm (core) / 3.1 mm (with PVC coating)
• Roll Widths: 1.2 m, 1.48 m
• Roll Lengths: 10 m, 15 m
• Packaging Options: Loose rolling or palletized with protective wrapping to prevent coating damage during transit.
• Corrosion Resistance: Dual-layer protection combining a zinc galvanized foundation with an external polymer coating.
• UV Stability: PVC formulation resists fading, cracking, and weathering from exposure to sunlight.


Primary Uses

• Industrial perimeter fencing
• Commercial property boundaries
• Residential enclosure installations
• Infrastructure and public safety barriers

PVC Coated Chain Link Fence Specification for Boundary and Property Enclosure for Jordan

PVC Coated Chain Link Fence – 125cm Wire Diameter (PVC) 3mm, and wire core must be 2.5mm.

• Fence Color: Anthracite (RAL7016) color finish.
• Fence Width: 125 cm fence width.
• Quantity: 15 rolls required.
• Wire Diameter: 3.0 mm overall wire diameter.
• Core Wire Diameter: 2.5 mm steel wire core diameter.
• Mesh Opening: 55 × 55 mm diamond mesh opening.
• Roll Length: 25 m roll length.
• Fence Height: 125 cm fence height.
• Height Adjustment: Fence can be cut to required height.
• Core Wire Requirement: 2.5 mm core wire required.
• Material Structure: Steel wire with PVC coating.
• Application: Boundary fencing and enclosure systems.
• Supply Format: Supplied in roll form.
• Installation Use: Suitable for fence post installation systems.
