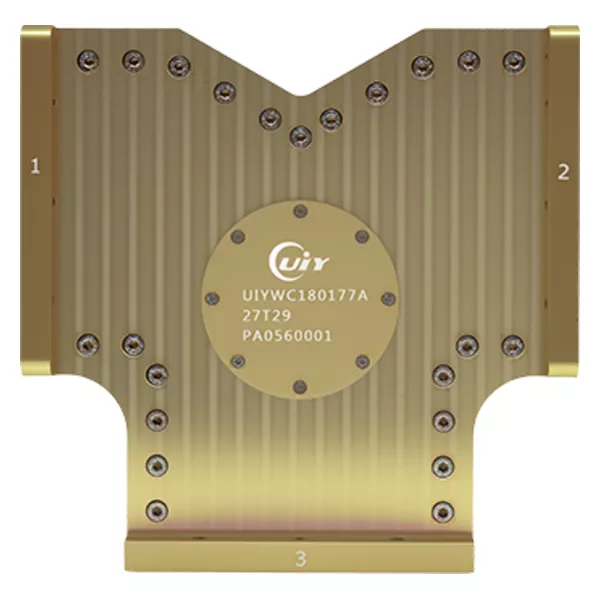

WR284 Circulator 2.7 to 2.9GHz 200W
Product sourcing details
WR284 Circulator (2.7-2.9GHz) delivers 200W forward and reverse power handling with ultra-low 0.3dB insertion loss and 20dB minimum isolation. This high-performance, competitively priced waveguide circulator features WR284(BJ32) interface and operates from -55°C to +85°C. Ideal for radar systems, telecom infrastructure, and wireless communications. Custom designs available, backed by a one-year standard warranty.
- Minimum Order
- 2
- Place Of Origin
- China (Mainland)
- Packaging
- 2pcs each box
- Delivery
- 28 Days
Specifications
WR284 Circulator 2.7-2.9GHz 200W
Design Features
- High RF performance, ultra-competitive price.
- Space and commercial applications.
- Custom design available upon request.
- Support one year standard warranty
RF Characteristics
| Model Number | UIYWC180177A27T29 |
| Freq. Range(MHz) | 2700~2900 |
| Insertion Loss Max(dB) | 0.3 |
| Isolation Min(dB) | 20 |
| VSWR Max | 1.2 |
| Forward Power(W) | 200 |
| Reverse Power(W) | 200 |
| Connector Type | WR284(BJ32) |
| Temp.(°C) | -55 to +85 |
Other Related Products
- RF Isolators
- RF Circulators
- Attenuator/Termination
- RF Filters
- Power Divider/Splitter
- Duplexer/Triplexer
- TX RX Combiner/Splitter
- Hybrid Combiner
- Directional Coupler
- Waveguide to Coaxial Adapter
Applications
- Radar System
- Telecom Infrastructure
- Microwave Radio Systems
- Communication Systems
- Wireless Radio Systems
- R&D labs
- Public Address System Radio Transmitter
- Biomedical Instrumentation
If you have any customized inquiries, please contact us promptly.
