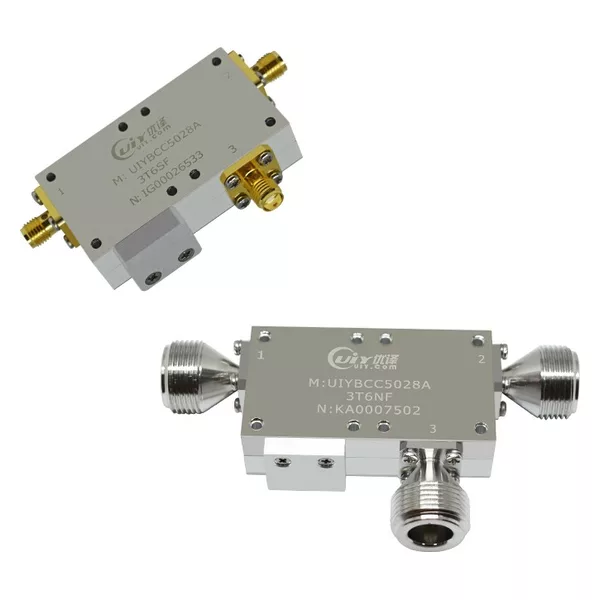

3 to 6GHz Dual Junction Coaxial Circulator
Product sourcing details
Engineered for space and commercial applications, this 3 to 6GHz Dual Junction Coaxial Circulator delivers 36 dB minimum isolation with just 1.0 dB insertion loss and 1.3 max VSWR. Rated for 100W forward/reverse power from -55°C to +85°C, it suits radar, telecom, and wireless systems. SMA-F or N-F connectors available, with custom designs and one-year warranty.
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $150.00 / Piece
- Packaging
- 4pcs each box
- Delivery
- 3-5 Days
Specifications
3 to 6GHz – Dual Junction Coaxial Circulator
Design Features
- Can be dual junction or multiple for high isolation.
- High RF performance, ultra-competitive price.
- Space and commercial applications.
- Custom design available upon request.
- Support one year standard warranty.
RF Characteristics
| Model Number | UIYBCC5028A3T6SF UIYBCC5028A3T6NF |
| Freq. Range(GHz) | 3.0 ~ 6.0 |
| Insertion Loss Max(dB) | 1.0 |
| Isolation Min(dB) | 36 |
| VSWR Max | 1.3 |
| Forward Power(W) | 100 |
| Reverse Power(W) | 100 |
| Connector Type | SMA-F, N-F |
| Temp.(°C) | -55 ~ +85 |
Other Related Products
- RF Isolators
- RF Circulators
- Attenuator/Termination
- RF Filters
- Power Divider/Splitter
- Duplexer/Triplexer
- TX RX Combiner/Splitter
- Hybrid Combiner
- Directional Coupler
- Waveguide to Coaxial Adapter
Applications
- Radar System
- Telecom Infrastructure
- Microwave Radio Systems
- Communication Systems
- Wireless Radio Systems
- R&D labs
- Public Address System Radio Transmitter
- Biomedical Instrumentation
If you have any customized inquiries, please contact us promptly.
