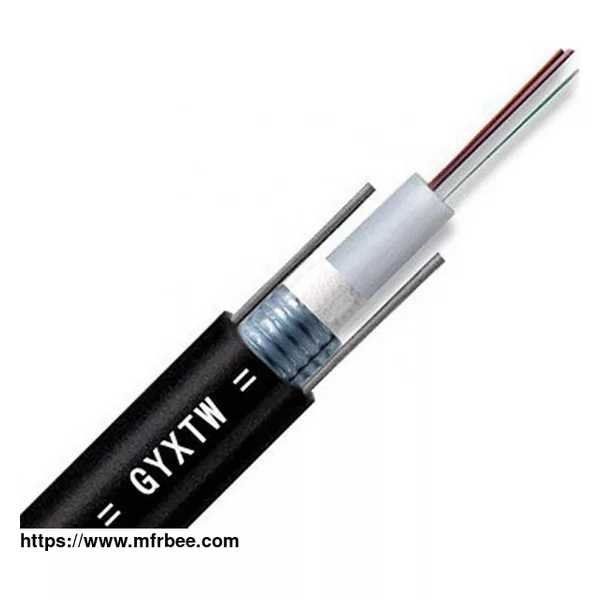

GYXTW Fiber Optic Cable

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Fiber Optic GYXTW cable is to sheath 250μm optical fiber into a loose tube which is filled with waterproof compound. Water blocking material is added between the steel tape and the loose tube to ensure the compactness and longitudinal water blocking of the optical cable.The gyxtw fiber optic cable is widely used for long-distance communication and inter-office communication which is thus, popularly applied world widely. Among those cables, 8 core GYXTW Fiber Optic Cable is the most popular.

As a fiber optic products supplier, we have been manufacturing GYXTW Fiber Optic Cable for over 10 years with ISO, UL, RoHS, REACH certificates. Reliable quality has won its popularity across five continents and the spread is growing. If you are looking for high-quality Fiber Optic GYXTW cable, we can meet your needs. With years of experience in Fiber Optic GYXTW cable manufacturing, TUOLIMA is your ideal and reliable Fiber Optic GYXTW cable supplier/manifacturer. Welcome to consult.

Advantages of GYXTW Fiber Optic Cable
Excellent water blocking layer, with good impermeability
The outer sheath of steel tape is bonded and metal reinforced leading to excellent tension performance
The central design of the beam tube minimizes the impact on the optical fiber
Small outer diameter, lightweight, convenient construction
Stable fiber excess length control
After the cable is formed, the additional attenuation of the GYXTW fiber optic cable is almost zero, and the dispersion value does not change
Adapt to most environment

Specification of GYXTW Fiber Optic Cable
Structure Unit Parameter
Fiber count Fibers 2~12 24
Loose tube Diameter mm Nom. Ф2.5 Nom. Ф3.0
Strength Member mm Ф0.9*2
Armor Material -- steel tape
Cable diameter mm Nom. Ф7.3 Nom. Ф7.8
Outer Sheath Thickness mm Min.0.8 mm
Cable weight Kg/km Approx.58 Approx.66
Bending Radius Dynamic mm ≥20D(D:Cable Diameter)
Static mm ≥10D(D:Cable Diameter)
Operating Temperature ℃ -100

Packing and Comments of GYXTW Fiber Optic Cable
The outdoor fiber optic cable is wound on a non-returnable wooden drum. Both ends of the cable are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

Cable type and number of optical fiber
Manufacturer name
Month and Year of Manufacture
Cable length

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

Drum marking, Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:

Manufacture name and logo
Cable length
Cable type and number of fibers
Roll way
Gross and net weight

If you are looking for a reliable fiber optic products supplier, don't hesitate to contact us!
