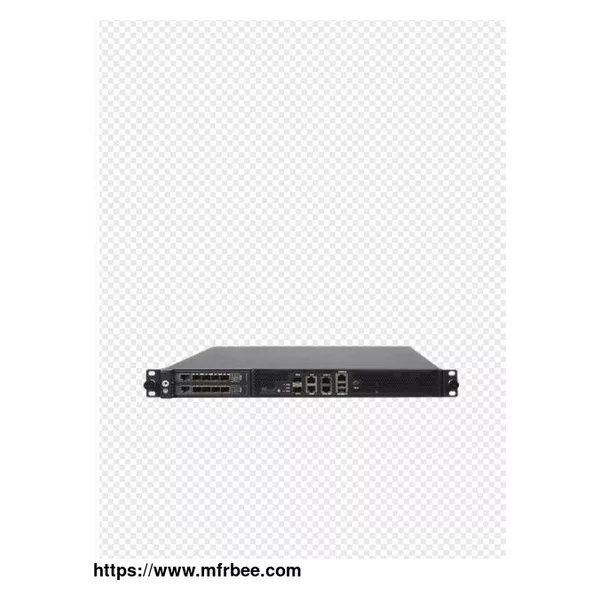

BBU3801 Baseband Unit
5G-LTE | BBU
The BBU3801 is the 4G BBU (Baseband Unit) in HyXG O-RAN base station solution. It achieves the functions of the 4G LTE BBU.
Highlights of BBU3801
Universal Platform & Open Architecture
The BBU3801 is based on a universal platform featuring mature supply chain and low cost. It adopts standard interfaces and modular design to facilitate functional expansion and integration of
products or accessories from different manufacturers. This promotes the division of labor, and further reduces the development and integration costs of the product.
Deep Fusion of Universal and Dedicated Platforms
The BBU3801 integrates some special CT (Communication Technology) functions such as clock synchronization into a universal server platform. It makes full use of PCIe interfaces to simplify the
design. It also meets the special requirements of 4G and 5G base stations for the universal platform to reduce the difficulty of integration and secondary development.
Superior Performance
Thanks to the high-performance, highly-integrated dedicated SoC chip and powerful universal server platform, the BBU3801 can be configured with up to two LBP3800 baseband boards, supporting six 4G
cells. One cell supports 400 active users, and one BBU3801 supports up to 2400 active users, equivalent to 4G macro base station specifications.
Good Compatibility with 4G/5G
The BBU3801 adopts a compatible design and supports universal chips of various specifications. Cooperating with various DU baseband boards, the BBU3801 can support 4G, 5G, and 4G+5G dual-mode base
stations, achieving smooth upgrade from 4G to 5G.
Specifications of BBU3801
Dimension 44.3mm × 435mm × 420.5mm
Power Consumption ˂300W
Power Supply 90V～264V AC
Capacity (cell) LTE TDD 6x20MHz LTE FDD 6x20MHz
Cell User Number RRC active user: 400 / cell
Synchronization Beidou / GPS / 1588v2
MTBF ≥250,000 Hours
MTTR ≤0.5 Hour
Temperature -5℃ ~ +55℃
Protection grade IP20
BBU5700M 4G&5G Dual-mode BBU
5G-LTE | BBU
BBU5700M is a 4G&5G dual-mode BBU. With modular stack design, it supports 5 NR, LTE FDD, TDD, and NB-IoT simultaneously. With full configuration (6 Basebands) maximum 36 LTE cells can be
afforded. LTE-A features (such as Carrier Aggregation, High Order MIMO, CoMP, etc.) are supported. For 5G architecture, NSA & SA can be supported both. And up to 18 NR cells can be afforded.
Highlights of BBU5700M
High capability
Modular stack design. Support TD-LTE/LTE FDD/NB-IoT/NR.
Large capacity
Support TD-LTE 36*20M / LTE FDD 36*20M / NR 18*100M 64TR.
Highly integrated
2U, 19”.
LTE-A features
CA, COMP, MIMO, etc.
Synchronization modes
GPS, Beidou, 1588v2.
Specifications of BBU5700M
Dimension 88 × 440 × 360 mm
Weight 21Kg
Power Consumption 350W (S111)
Power Supply -48V DC (-57V ~ -40V)
Capacity (cell) LTE TDD 36x20MHz LTE FDD 36x20MHz NR 18×100M 64TR
Cell User Number RRC connected user: 1200 / cell RRC active user: 400 / cell
Synchronization Beidou / GPS / 1588v2
MTBF ≥200,000 Hours
MTTR ≤0.5 Hour
Temperature Long-term: -5°C ~ +55°C Short-term: -20°C ~ +70°C
Moisture Long-term: 15%~85% Short-term: 5%~95%
LBP3800 Baseband Board
5G-LTE | BBU
The LBP3800 baseband board is 4G DU (Distributed Unit) board in HyXG O-RAN base station solution. It achieves some 4G LTE DU functions.
Highlights of LBP3800
High capability and large capacity
Modular stack design, support TD-LTE/LTE FDD. Support TD-LTE 3*20M / LTE FDD 3*20M.
Highly integrated
Adopt a highly integrated baseband SOC chip. Integrate 6 DSP processing cores and physical layer hardware accelerators and 4 PowerPC processing cores and network accelerators.
Standard interface
Standard PCIe interface, convenient for customer integration.
Specifications of LBP3800
Dimension 254mm x 111.15mm x 1.6mm
Weight <1kg
Power Consumption ˂50W
Power Supply 12V DC
Capacity (cell) LTE TDD 3x20MHz LTE FDD 3x20MHz
Cell User Number RRC active user: 400/cell
MTBF ≥150,000 Hours
MTTR ≤0.5 Hour
Temperature -5℃ ~ +55℃
Panel Interface 4*SFP+, 9.83G CPRI, compatibility to 4.9G and 2.5G
Installation PCIe card insertion mode
