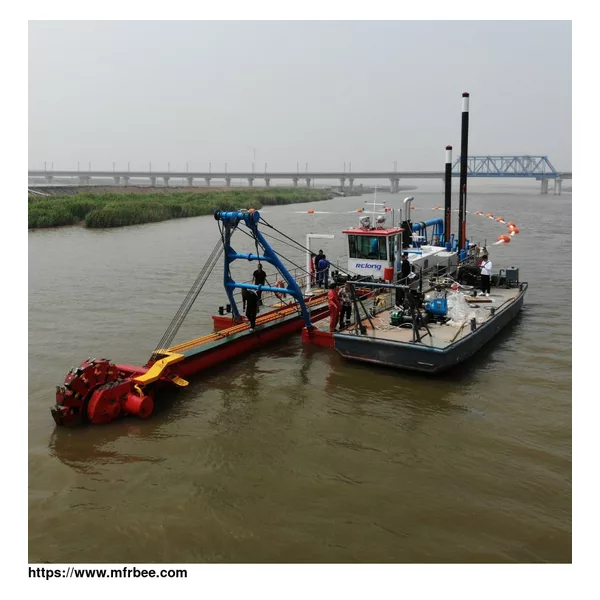

Bucket wheel dredger
The bucket wheel suction dredger is ordered by client to do the river dredging work. Coz the clay layer is hard, a bucket wheel type cutter head is more suitable in this working
situation.
The bucket wheel dredger is developed from general cutter suction dredger.It is a new type of hydraulic dredger.The dredger is a combination of land excavating bucket wheel and cutter suction
dredger ,which improves the cutting and dredging ability of the dredger,and increases the productivity while reduces the energy consumption of dredging and winch swing.It is ability to dredge and
cut the soil layer is very strong,which is suitable for dredging hard soil,cohesive soil and sand ,ore and other materials.
Bucket dredger
In order to improve the dredging efficiency, the spud carrier is equipped at the stern of the dredger.
Bucket wheel suction dredger | Dredging Capacity(m3/h) | Dredging Depth(m) | Total installed power(kw) | Pipe diameter(mm) | Max discharge distance(m) |
Bucket wheel suction dredger BWD650 | 6000 | 15 | 2273 | 650 | 2000 |
Bucket wheel suction dredger BWD550 | 4500 | 14 | 1690 | 550 | 2000 |
Bucket wheel suction dredger BWD500 | 3500 | 14 | 1231 | 500 | 2000 |
Bucket wheel suction dredger BWD450 | 3000 | 13 | 1000 | 450 | 2000 |
Bucket wheel suction dredger BWD400 | 2200 | 14 | 859 | 400 | 2000 |
Bucket wheel suction dredger BWD300 | 1200 | 12 | 559 | 300 | 1500 |
Bucket wheel suction dredger BWD250 | 800 | 10 | 336 | 250 | 1000 |
Bucket wheel suction dredger BWD200 | 500 | 6 | 224 | 200 | 500 |
