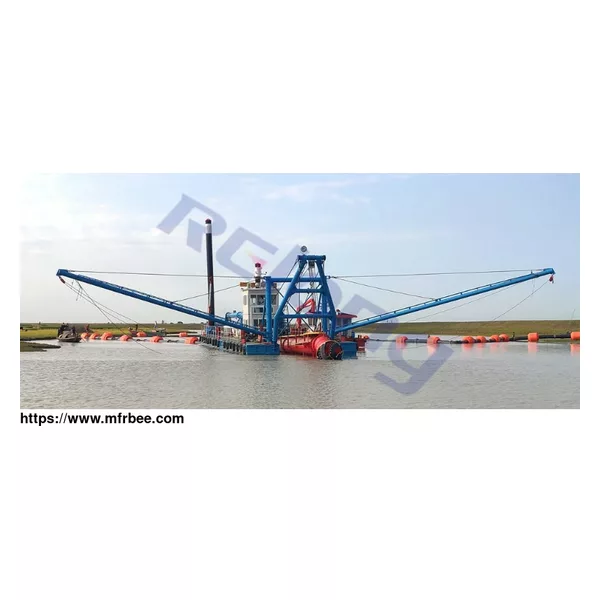

Relong Cutter Suction Dredger

Model	Dredging Capacity	Dredging Depth	Suction/Discharge Pipe Dia.	Engine(s) Power
RLCSD-200	500 m 3 /hr	1-5 m	200/200 mm	160-300 kw
RLCSD-250	800 m 3 /hr	1-8 m	250/250 mm	200-400 kw
RLCSD-300	1200 m 3 /hr	1-12 m	300/300 mm	400-600 kw
RLCSD-400	2200 m 3 /hr	1.5-14 m	400/400 mm	700-1200 kw
RLCSD-500	3500 m 3 /hr	1.5-15 m	600/500 mm	1100-1600 kw
RLCSD-650	5000 m 3 /hr	1.5-18 m	650/650 mm	2200-2500 kw
RLCSD-700	7000 m 3 /hr	1.5-20m	750/700 mm	2800-3500 kw

Product Description
Relong cutter suction dredger is a hydraulic dredger that uses centrifugal pumps with a rotating cutter head to loosen, lift and transport dredged material. Dredging machines are non-propelled dredgers.

Types of dredging materials: These are capable of dredging compacted soil types and materials, such as clay and rock.
land reclamation and the construction of new harbour basins and canals

Project Applications:
Port and harbour construction and maintenance
Land reclamation
Coastal protection
Offshore trenching
Environmental dredging
Lakes and reservoirs construction and maintenance
Aggregate dredging.
