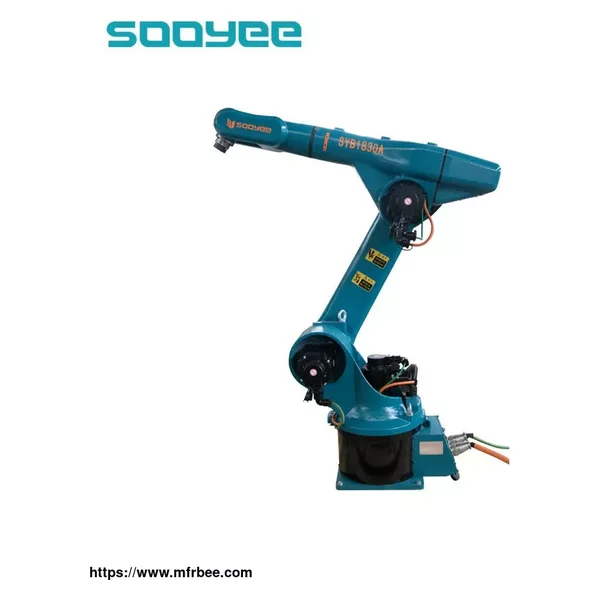

https://www.hitsooyee.com/SYB1830A-1800mm-30KG

Cost-effective, high performance, competitive 6 axis handling robot for assembly, pickup in metal processing, packaging and printing, food packaging, automotive manufacturing...


Advantage of Handling Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.

*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.

1. Specification of Handling Robot

model

Items

SYB1830A

Basic parameters

DOF

6

Payload

30 Kg

J3 Axis Additional Load

25 Kg

Repeated Positioning accuracy

±0.08mm

Robot Weight

About255 Kg

Installation Way

Floor/sidewall

Power Capacity

4.5 KW

Supply Voltage

Three-phase380V

Brake

All axis with brake

action

Range

1800 mm

Min arrival distance of point P

491 mm

J1 axis(rotation)

±170°

J2 axis(

-80°~+180°

J3 axis(Upper arm swing)

-85°~+95°

J4 axis(Arm Gyrate)

±360°

J5 axis(Wrist pitching)

±135°

J6 axis(Wrist rotation)

±360°

Max speed

J1 axis(rotation)

70°/s

J2 axis(Lower arm swing)

70°/s

J3 axis(Upper arm swing)

138°/s

J4 axis(Arm Gyrate)

168°/s

J5 axis(Wrist pitching)

270°/s

J6 axis(Wrist rotation)

337°/s

EndResultant Speed

1.2 m/s

Max

Allowable torque

J4 axis

60.0 N• m (6.12kgf• m)

J5 axis

60.0 N• m (6.12kgf• m)

J6 axis

30 N• m (3.06kgf• m)

End Flange

Solid

Can it be Changed to 5-axis

Yes

Can it be Customized Inverted Installation

Yes

Main application

carry、palletizing、CNC machine loading and unloading、spraying

Isolation Transformer

Yes

2. Handling Robot Action range and Machine Dimensions
