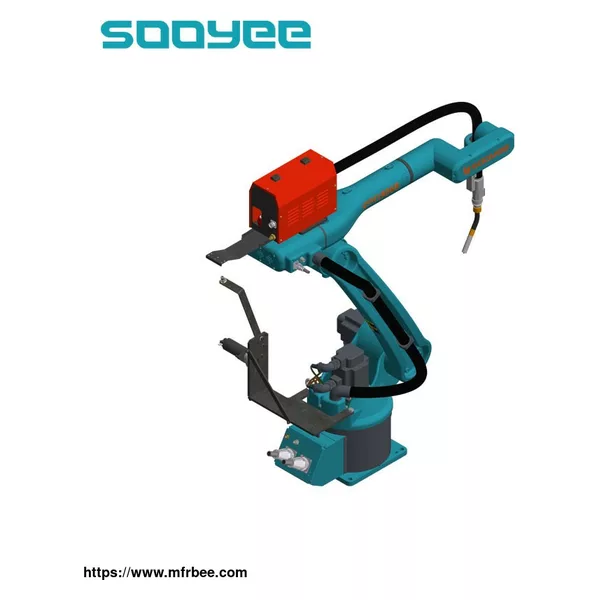

Cost-effective, highly competitive 6 axis welding robot, matching with different type of welding machine. suitable for stainless steel welding, carbon steel welding and aluminum welding, low spatter welding, sheet metal processing and etc.
Find out our special welding offer with welding gun,wire feeder and welding machine.


Advantage of Welding Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.

*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.

1. Specificationof Welding Robot

model

Items

SYH1806B

Basic parameters

DOF

6

Payload

6 Kg

J3 Axis Additional Load

12 Kg

Repeated Positioning accuracy

±0.05mm

Robot Weight

About162Kg

Installation Way

Floor/sidewall

Power Capacity

2.5 KW

Supply Voltage

Three-phase380V

Brake

J2、3、4、5axis with brake

action

Range

1797 mm

Min arrival distance of point P

437 mm

J1 axis(rotation)

±170°

J2 axis(

-70°~+170°

J3 axis(Upper arm swing)

-85°~+90°

J4 axis(Arm Gyrate)

±360°

J5 axis(Wrist pitching)

±360°

J6 axis(Wrist rotation)

±360°

Max speed

J1 axis(rotation)

138°/s

J2 axis(Lower arm swing)

138°/s

J3 axis(Upper arm swing)

223°/s

J4 axis(Arm Gyrate)

270°/s

J5 axis(Wrist pitching)

337°/s

J6 axis(Wrist rotation)

1070°/s

EndResultant Speed

1.5 m/s

Max

Allowable torque

J4 axis

15.0 N• m

J5 axis

15.0 N• m

J6 axis

4.3 N• m

End Flange

Hollow

Welding gun install way

internal

recommend welding gun cable length

1.35m

Can it be Changed to 5-axis

Yes

Can it be Customized Inverted Installation

Yes


2.WeldingRobot Action range and Machine Dimensions
