Supplier: Chengdu Sooyee Intelligent Technology Co., Ltd.

Contact the supplier to confirm specifications, minimum order, sample availability and lead time.

https://www.hitsooyee.com/SYM1550B-armspan-1550mm-50KG

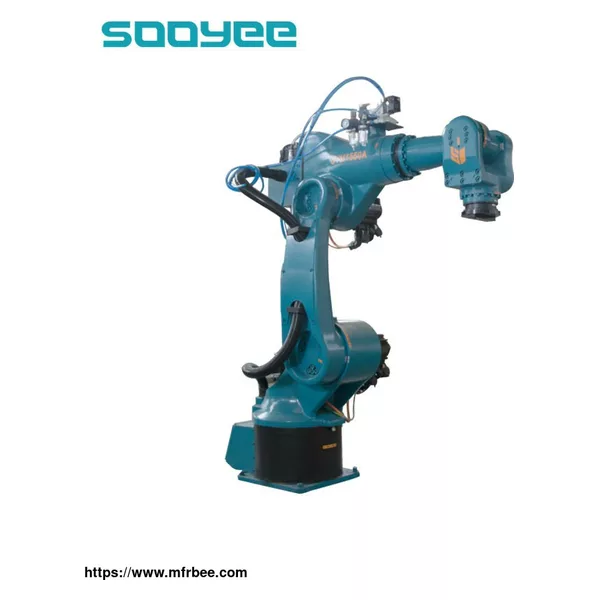

Cost-effective,highly competitive 6 axis polishing robot,for different material removal.


Advantage of Polishing Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.

*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.


1. Specification of Polishing Robot

model

Items

SYM1550B

Basic parameters

DOF

6

Payload

50 Kg

J3 Axis Additional Load

20 Kg

Repeated Positioning accuracy

±0.15mm

Robot Weight

About300 Kg

Installation Way

Floor/sidewall

Power Capacity

4.5KW

Supply Voltage

Three-phase380V

Brake

All axis with brake

action

Range

1500mm

Min arrival distance of point P

460 mm

J1 axis(rotation)

±170°

J2 axis(

-70°~+180°

J3 axis(Upper arm swing)

-84°~+90°

J4 axis(Arm Gyrate)

±360°

J5 axis(Wrist pitching)

±125°

J6 axis(Wrist rotation)

±360°

Max speed

J1 axis(rotation)

70°/s

J2 axis(Lower arm swing)

70°/s

J3 axis(Upper arm swing)

138°/s

J4 axis(Arm Gyrate)

300°/s

J5 axis(Wrist pitching)

223°/s

J6 axis(Wrist rotation)

333°/s

EndResultant Speed

1.0 m/s

Max

Allowable torque

J4 axis

227.0 N• m

J5 axis

167.0 N• m

J6 axis

167.0 N• m

End Flange

Solid

Can it be Changed to 5-axis

Yes

Can it be Customized Inverted Installation

Yes

Main application

carry、palletizing、machine tool loading and unloading, polishing

Isolation Transformer

Yes


2. Polishing Robot Action range and Machine Dimensions
