https://www.hitsooyee.com/SYB1510A-1500mm-10KG

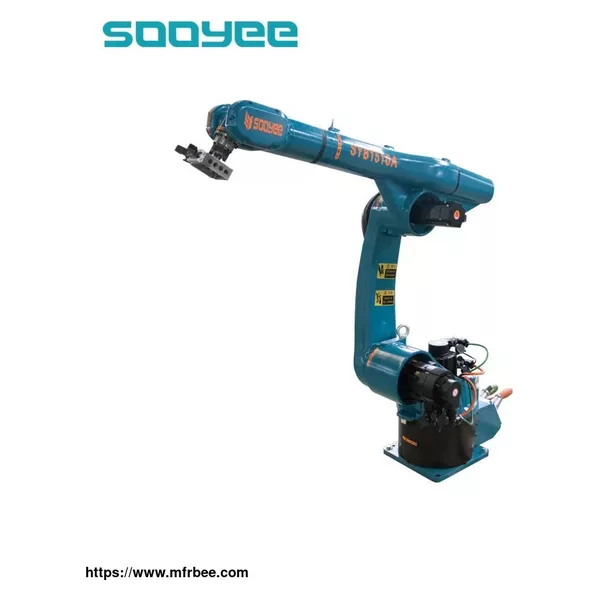

Cost-effective, high performance, competitive 6 axis handling robot for assembly, pickup in metal processing, packaging and printing, food packaging, automotive manufacturing...


Advantage of Handling Robot:
*Proprietary robot body technology and excellent product iteration capability.
*Rear-mounted motor of robot body.
*Light weight and small inertia of robot end, large armspread and load redundancy.
*Excellent waterproof and dust-proof performance and high temperature resistance.

*High quality: strong R&D; original design robot structure and Manufacture.
*Good Price: most competitive price, because we are a manufacturer.
*Reliable Service: prompt response; Online support; Video technical support.
*Low cost maintain: 3 years warranty.

1. Specification of Handling Robot

model

Items

SYB1510A

Basic parameters

DOF

6

Payload

10 Kg

J3 Axis Additional Load

12 Kg

Repeated Positioning accuracy

±0.05mm

Robot Weight

About160Kg

Installation Way

Floor/sidewall

Power Capacity

2.5 KW

Supply Voltage

Three- phase380V

Brake

All axis with brake

action

Range

1500 mm

Min arrival distance of point P

400 mm

J1 axis(rotation)

±170°

J2 axis(

-70°~+170°

J3 axis(Upper arm swing)

-85°~+90°

J4 axis(Arm Gyrate)

±360°

J5 axis(Wrist pitching)

±120°

J6 axis(Wrist rotation)

±360°

Max speed

J1 axis(rotation)

138°/s

J2 axis(Lower arm swing)

138°/s

J3 axis(Upper arm swing)

223°/s

J4 axis(Arm Gyrate)

168°/s

J5 axis(Wrist pitching)

270°/s

J6 axis(Wrist rotation)

337°/s

EndResultant Speed

1.5 m/s

Max

Allowable torque

J4 axis

20.0 N• m

J5 axis

20.0 N• m

J6 axis

7.0 N• m

End Flange

Solid

Can it be Changed to 5-axis

Yes

Can it be Customized Inverted Installation

Yes

Main application

carry、palletizing、CNC machine loading and unloading、gumming、spraying

Isolation Transformer

Yes


2. Handling Robot Action range and Machine Dimensions
