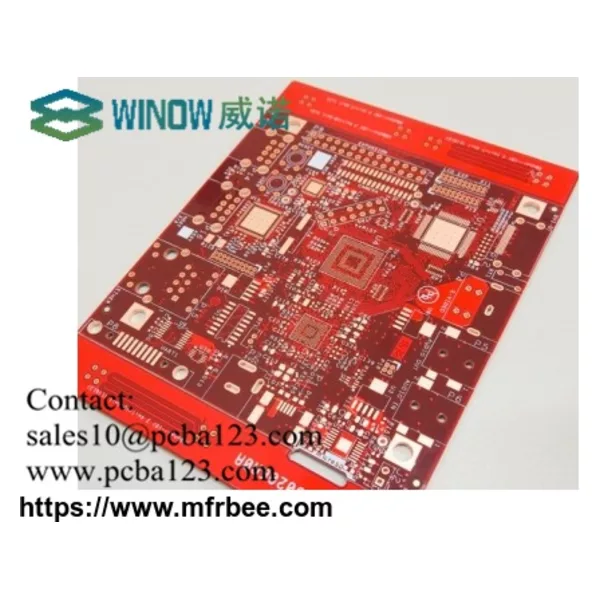

HDI Microvia PCBs -HIGH DENSITY INTERCONNECT BOARD (Enquiry pls send to Sales@rmpcb.com )
HDI boards, one of the fastest growing technologies in PCBs, are now available at RM Tech. HDI Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.
There are 6 different types of HDI boards, through vias from surface to surface, with buried vias and through vias, two or more HDI layer with through vias, passive substrate with no electrical connection, coreless construction using layer pairs and alternate constructions of coreless constructions using layer pairs.
HDI any-layer printed circuit boards are the next technological enhancement of HDI microvia printed circuit boards.
