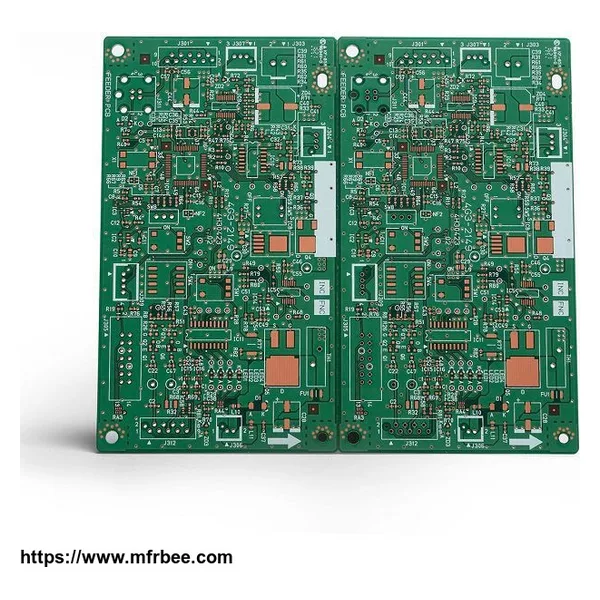

Multilayer PCB
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 100
- Packaging
- Carton/ Package
- Delivery
- 14 Days
Specifications
Eolane
•PCB Prototypes
•Short Runs
•Medium Runs
•Long Runs
Value added services, superior product quality, on-time delivery, and total customer satisfaction are our core priorities.
Multilayer pcb board
•Max Number ofmultilayer PCB Layers: Up to 36 Layers
•Max Circuit Board Size: 21"x 24" (533.4 x 609.6) (Special Size ,Pls contact us ,Led length up to 1500mm)
•Min Trace/Space: 3 mil (0.0762mm)
•Min Mechanical Drill Size: 8mil (0.20mm)
•Min Laser Drill Size: 3 mil (0.0762mm)
•Max Inner Copper: 5oz
•Max Outer Copper: 11 oz
•Controlled Impedance +/-7%
•Blind / Buried Vias
•Material: FR4, FR4 High Tg, Aluminum, Rogers, Arlon, etc.
•Surface: Lead Solder (HASL), Lead Free Solder(HASL – LF), ENIG, Immersion Silver, Immersion Tin, OSP, Hard Gold, Flash Gold, etc.
•RoHS Compliant
•Class II & Class III
•UL certified
•ISO 9001
•Free E-test on Every Board
Multilayer Rigid PCB Specification
| Number of layers | 4L-36L |
| Materials | Standard FR4，Hig TG FR4,Halogen-Free FR4,High Speed FR4,High Frequency FR4. |
| PCB thickness | 0.38mm-5mm |
| Minimum track width/Space | 0.075mm/0.075mm |
| Cu thickness (finished) | 1oz to 5oz |
| Maximum Panel size | 850mmX570mm |
| Surface treatment | HASL, ENIG, Immersion Tin, OSP, Immersion Silver, Hard Gold/Soft Gold, Gold Finger,ENEPIG. |
| Minimum Drill size(Mechanical) | 0.15mm |
If you are looking forcheap flexible pcb, please contact us.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,European Union
- Founded Year:2015
- Address:#49, 9 Dongfu Road, Dongjing Industrial Park, SIP, Suzhou, China
- Contact:Anita Ren
