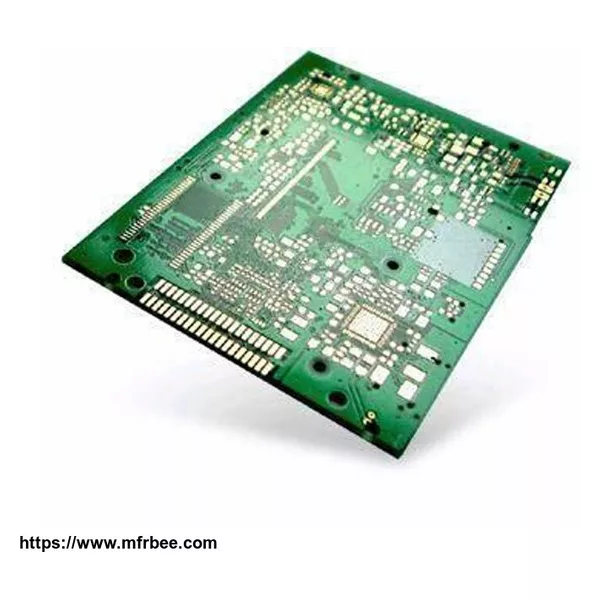

Double Sided PCB
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 100
- Packaging
- Carton/ Package
- Delivery
- 14 Days
Specifications
We are offering our client an excellent quality range ofdouble sided PCB
Features of double PCB:
Excellent performance
Precise design
Easy installation
Excellent finish
Reliable
Cost effective
Keeping in mind the precise demands of clients, we offer a wide range ofDouble Sided PCB board
Welcome to compare quality and prices from our different PCB factories.Eolane
A double sided circuit board PCB and single sided PCB are essentially the same. The difference being is that a single sided board has copper on one side of the board. Technically speaking, a single-sided board will not have copper plated in the drilled holes either.
The foundation of the PCB is the rigid fiberglass laminate. When it comes to the manufacturing process, there are many types of PCB materials that may be used. Which material gets used is determined by the PCB designer in order to meet electrical, temperature, and other related properties. For this discussion, we will just talk about the standard material that is used, which is fiberglass and often referred to as FR4.
Double Sided PCBs (also known as Double-Sided Plated Thru or DSPT) circuits are the gateway to higher technology applications. They allow for closer (and perhaps more) routing traces by alternating between a top and bottom layer using vias. Today,double sided printed circuit board technology is perhaps the most popular type of PCB in the industry.
There are many different thicknesses available for double-sided boards. Some examples are .020″, .031″, .047″, .059″, .093″, .125″.
Benefits of Double Sided PCBs:
More flexibility for designers
Increased circuit density
Relatively lower costs
Intermediate level of circuit complexity
Reduced board size (which can reduce costs)
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,European Union
- Founded Year:2015
- Address:#49, 9 Dongfu Road, Dongjing Industrial Park, SIP, Suzhou, China
- Contact:Anita Ren
