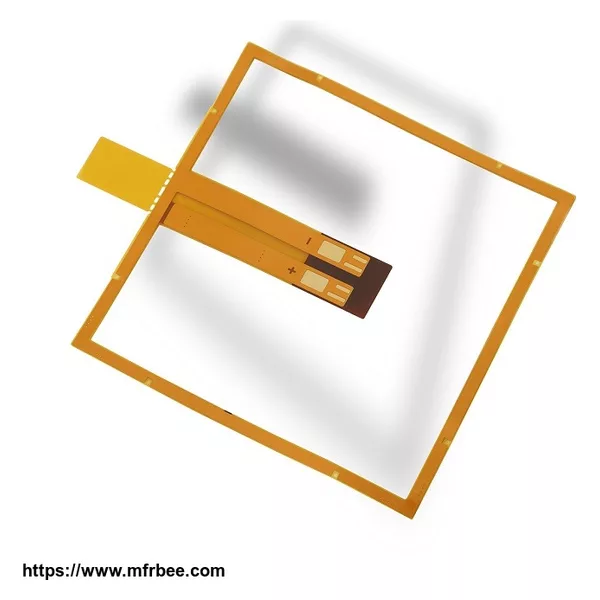

Flexible PCB
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 100
- Packaging
- Carton/ Package
- Delivery
- 14 Days
Specifications
Do you want tobuy flexible pcb
Flex pcb prototype
Flexible circuits are also used extensively in other applications and industries including:
• Communications
• Consumer Electronics
• Automotive
• Medical
• Industrial
• Aerospace
• Military
• Transportation
In transportation they are extensively used due to their improved resistance to vibrations and movement.
Flexible printed circuit boards offer a number of potential benefits including:
• Saving Space. Flex PCB design requires only about 10 percent of the space and weight of an ordinary circuit board assembly, offering greater installation and packaging freedom. The inherent flexibility also permits tighter bend capabilities.
• Maximum Reliability. A flexible printed circuit board requires fewer interconnects, which in turn requires fewer contact crimps, connectors and solder joints. Simply put, a flexible PCB board does not contain as many potential sources for failure, which enhances their reliability.
• Enhanced Capabilities. The flexible printed circuits boards are compatible with virtually any type of connector or component and works well with options such as ZIP connectors. They also perform extremely well in extreme temperatures and offer superior resistance to radiation and chemicals.
• Cost Savings. Cost-saving advantages of Flexible PCBs include reduced material and packaging demands, lower parts replacement costs and assembly errors that could result in the need for repairs.
These benefits make flex PCBs ideally fit for a wide range of applications in industries such as Military, Transportation, Medical, Consumer Electronics, Automotive, Aerospace, Communications and Industrial.
Flexible Printed Circuit Boards are one of the most popular types of circuit boards used in a variety of industrial and commercial applications. AtEolane
Flex Circuit Boards Specification
| Number of layers | 1L~6L |
| Materials | Adhesive/Adhesiveless FCCL,PI,FR4 Stiffener,Acrylic adhesive series,Epoxy adhesive series, Acrylic adhesive series |
| Profile method | CNC,laser cutting,punching |
| Copper weights (finished) | 0.5oz-3oz |
| Minimum track and gap | 0.075mm / 0.075mm |
| PCB board thickness | min0.06mm |
| Maximum dimensions | 305mm*457mm |
| Surface finishes available | HAL LF, OSP, ENIG,ENEPIG, Immersion tin, Electrolytic gold, Gold fingers,Tin plating ,Immersion sliver |
| Minimum mechanical drill | 0.1mm |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,European Union
- Founded Year:2015
- Address:#49, 9 Dongfu Road, Dongjing Industrial Park, SIP, Suzhou, China
- Contact:Anita Ren
