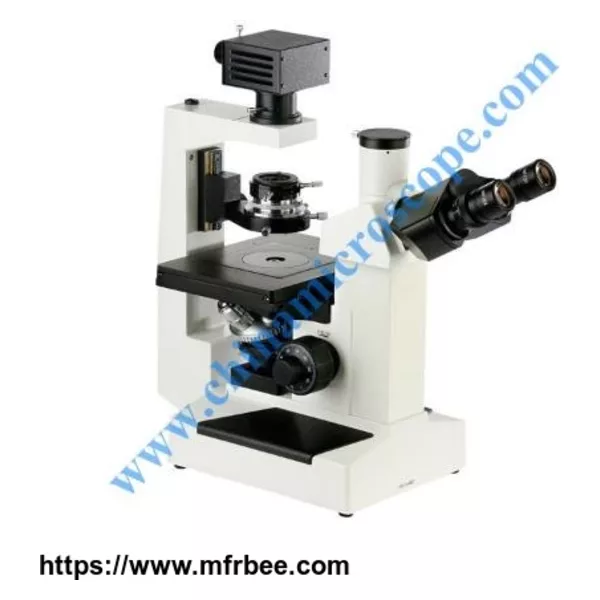

L-I1 inverted biological microscope
Product sourcing details
Supplier: Chongqing MIC Technology Co., Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Model | L-I1 |
Eyepiece | Wide field WF10X(20mm) |
Objective | Long working distance plan achromatic PL L 10X/0.25 |
Long working distance plan achromatic PL L 25X/0.40 | |
Long working distance plan achromatic PL L 40X/0.60 | |
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP | |
Eyepiece tube | Trinocular (Inclination of 30°, 100% image light for photography capable) |
Focus system | Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple(Ball bearing inner locating) |
Stage | Double layer mechanical (Size200mmX152mm,moving range:75mmX30mm) |
Shelf of specimen | Match to install µ68mm or 77mmX33mm culture utensil |
Match to install µ68mm culture utensil | |
Filter | Blue filter |
Green filter | |
Frosted filter | |
Impellent style phase contrast unit | Centering telescope |
10X Impellent style phase plate | |
Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm | |
Light source | 6V 20W Halogen lamp with brightness control. |
