Items | H6500i | |
EP10a | 10X-18 plan eyepiece | ●● |
EW10 | 10-20 plan eyepiece | ○○ |
EP16a | 16×-10 plan eyepiece | ○○ |
EPg10 | 10×-18 pointer eyepiece | ○ |
EW16 | 16×-14 wide field eyepiece | ○ |
EPr10b | 10×-18 plan reticle eyepiece | ○ |
B-OPi10a | 10×/ NA=0.25;WD=4.81;IOS Plan Achromatic Objectives | ● |
B-OPi20a | 20×/ NA=0.40;WD=2.58 IOS Plan Achromatic Objectives | ● |
B-OPi40a | 40×/ NA=0.66;WD=0.82; IOS Plan Achromatic Objectives | ● |
B-OPoi100a | 100×/ NA=1.25;WD=0.19; IOS Plan Achromatic Objectives (oil) | ● |
B-OAi4b | 4×/ NA=0.10;WD=10.17; IOS Achromatic Objectives | ○ |
B-OAi10b | 10×/ NA=0.25;WD=2.26; IOS Achromatic Objectives | ○ |
B-OAi40b | 40×/ NA=0.6; WD=0.75; IOS Achromatic Objectives | ○ |
B-OAoi100b | 100×/ NA=1.25;WD=0.69; IOS Achromatic Objectives(oil) | ○ |
TTR04 | Trinocular Head (30°Inclined, Seidentopf, interpupillary distance 55~75) | ● |
S30 | Mechanical Stage: Moving Range:76x50, Size: 160X135 | ● |
C23 | Condenser: NA=1.25 | ● |
CA03a | Condenser elevating group | ● |
C06a | Phase contrast Condenser: NA=1.25(SPL PH-Contrast objectives only) | ○ |
C06 | Phase contrast Condenser: NA=1.25(PL PH-Contrast objectives only) | ○ |
B30 | Base Halogen Tungsten Lamp, 6V20W, wide voltage input | ● |
EPHn2.5 | 2.5×Photo Eyepiece, Φ42 | ○ |
EPHn4 | 4×Photo Eyepiece, Φ42 | ○ |
EPHn6.3 | 6.3×Photo Eyepiece, Φ42 | ○ |
TV09c+DV02+camera adaptor | Digital photograpy device | ○ |
TV09b | 0.35× video device | ○ |
TB11 | Side view device, View field distance 600 | ○ |
II09 | Reflecting device | ○ |
FD07 | Epi-fluorescent illumination device (B、G) | ● |
FD08 | Epi-fluorescent illumination device (UV、V、B、G) | ○ |
LH08 | 100W mecury lamp house | ● |
PS-2 | 100W mecury lamp power supply case | ● |
Cu02-1 | Blue filterφ32 | ● |
Items Specification X-OF2 Eyepiece WF 10X-18mm ●● WF 10X-20mm ○○ WF16X-13mm ○○ WF 10X-18 mm (Reticule 0.1mm) ○ Infinity E-Plan Objectives Plan 4X ● Plan 10X ● Plan 20X (S) ○ Plan 40X (S) ● Plan 100X (Oil) (S) ● Main Body / ● Fluorescence Attachment Epi ...
Items Specification X-OF12 X-OF14 Eyepiece WF10×-20 mm ●● ●● WF16×-13 mm ○○ ○○ WF10×-20 mm (Reticule 0.1mm) ○ ○ Infinity Plan Objective 4× ● ● 10× ● ● 20×(S) ● ● 40×(S) ● ● 100×(Oil)(S) ● ● Seidentopf Binocular Head Inclined ...
Parts Specification FY-1B FY-1T Head Binocular head ● / Trinocular head / ● Microscope Main Body Optical System Infinity optical system ● ● Total Magnification 40X-1600X ● ● Eyepiece Plan P10x/φ18mm ● ● Plan P16x/φ14mm ● ● Viewing Head Infinity ...

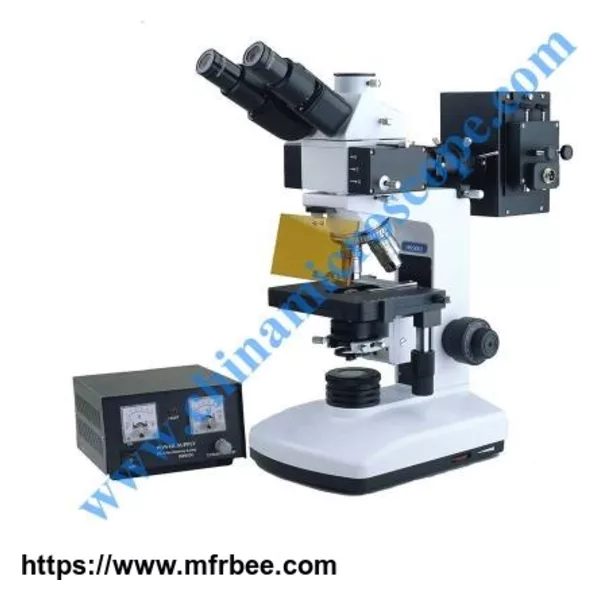

FY-2 Epi-Fluorescence microscope include fluorescence light and transmitted bright field light system, can be widely used in all kinds of basic theories research and clinical diagnosis, like biology, cytology, histology, oncology, genetics, and immunology. ◆Normal light and ...
