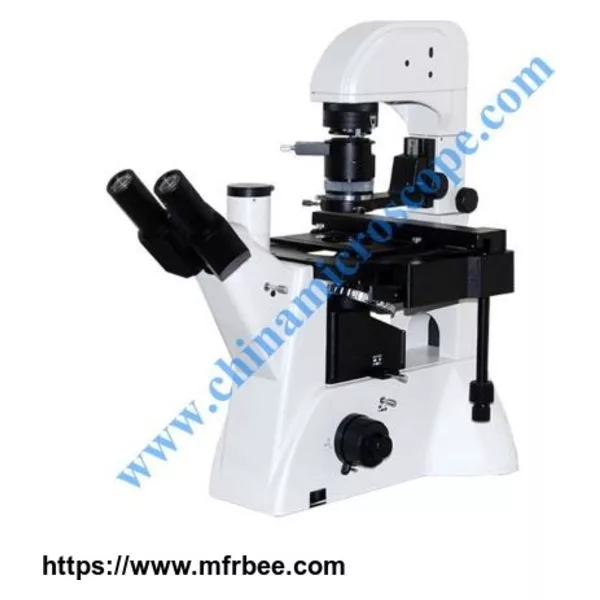

L-S3DIC inverted biological microscope
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Main parameters | Total magnification | 50X~400X | |||
| Mechanical tube length | ∝ | ||||
| Conjugate distance of objective | ∝ | ||||
| Eyepiece | Wide-field plan eyepiece | WF 10X | FNФ22mm | Ф30mm | Parfocal distance 10mm |
| Centering telescope TE-3 | |||||
| Binocular | Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm Trinocular head optional | ||||
| Objective | Magnification | N.A | W.D(mm) | T (mm) | Note |
| 5X | 0.12 | 18.2 | - | DIC Phase contrast objective | |
| 10X | 0.25 | 20.2 | 0 | ||
| 20X | 0.35 | 6.0 | 0 | ||
| 40X | 0.60 | 3.5 | 1.2 | For bright field view | |
| 10X | 0.25 | 4.3 | 1.2 | Module contrast | |
| Nosepiece | Quintuple | ||||
| Condenser | Working distance 55mm, N.A 0.3 | ||||
| Stage | Mechanical Stage, moving range 77mm (longitudinal)X134.5mm (transverse), detachable stage moving device | ||||
| Focus system | Coaxial carse/fine focus with tension adjustable and up stop , Minimum division of fine focusing is 2 um | ||||
| Culture dish holder | Holder 1 | 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm | |||
| Holder 2 | 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm | ||||
| Holder 3 | 57mm (W)X82mm (L) | ||||
| Light source | 5W LED lamp (5000～5500K) input 3.9～4.0V, adjustable in brightness |
