API Pipe Mill/ Oil/Gas Welded Pipe Machine

Minimum Order
1
Packaging
N/A
Delivery
3-6 months

API Pipe Mill/ Oil/Gas Welded Pipe Machine




Product description:


The oil, natural gas steel pipe production line produce the delivery pipe and petroleum drive pipe etc conforming to standard of API-5L, API-5CT, ASTM A53 Grade A&B, also used in boiled and heat transfer. etc high-pressured transportation pipelines


We absorbed the international advanced technology of tube making, adopting FFX and cage roll forming etc flexible formation technology , which made CAD system apply to deformation process of welded pipe which analysis and research the distortion control craft of high grade steel pipe ,also coordinated with high-performance welding machine to solve better the forming and welding defects that provide the welded pipe products of .high grade & high added-value for users.


Technical Procedures:

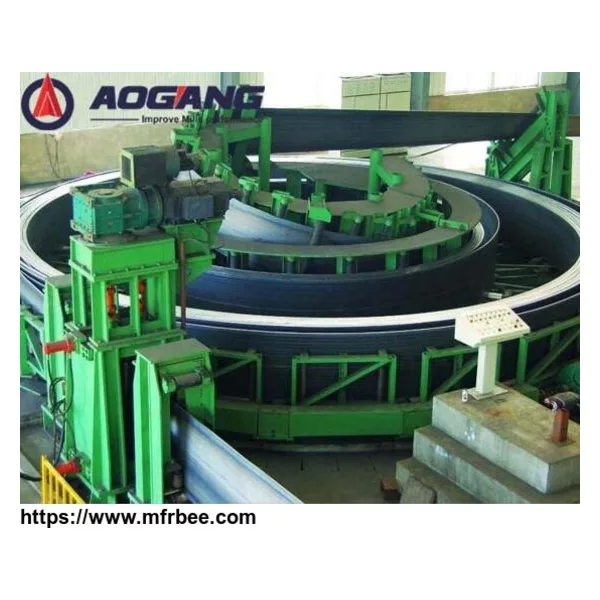

Coil loading→Uncoiling→Strip threading & levelling machine→Shearing & Welding→Accumulating→Forming→HF welding→Inner & Outer de-burring→Weld annealing→Air Cooling→Water cooling→Eddy current tes→Fine sizing→Turk straightening→Pipe Marking→Flying cut off→Run out table→Straightening machine→End facing→Run out table→Hydrostatic testing→Run out table→Packaging→storing.


Feature:


High precision, High speed


Rolling forming, Cage forming, FFX forming technology


Quick change rollers systems


Save time and labor


Save cost on rollers


Combined roller technology


Motor drives individually technology


Welded tube meets API-5L,API-5CT standard


Welding seam tracking and Welding quality control technology


Model Diameter(mm) Thickness(mm) Speed (m/min)
API114 Ø48~ Ø114 1.5~5.0 20~60
API140 Ø48~ Ø140 1.5~5.0 20~60
API165 Ø60~ Ø165 2.0~6.0 10~45
API219 Ø89~ Ø219 3.0~8.0 10~35
API273 Ø114~ Ø273 4.0~12.7 10~35
API325 Ø165~ Ø325 4.0~12.7 10~35
API426 Ø165~ Ø426 6.0~16.0 10~35
API508 Ø219~ Ø508 6.0~16.0 10~35
API610 Ø219~ Ø610 6.0~18.0 10~25



Note : The line is non-standard products and can be produced according to user requirements, parameters sheet for reference only.
