Cut To Length Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 3-6 months
Specifications
Cut To Length Machine
Product Description

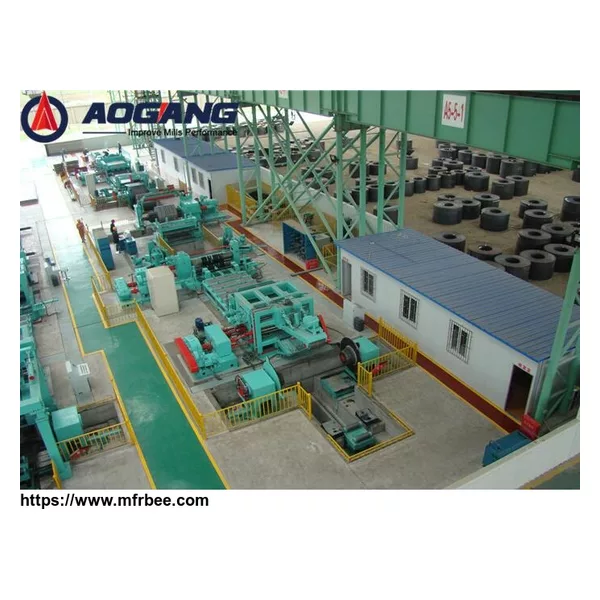

High speed metal/steel coil cut to length machine is also named cut to length line/ decoiling line/ shearing line/ leveling line/ blanking line.
It is used for processing the CR/ pre-painted or galvanized steel and stainless steel coils less than 3mm thickness through decoiling, leveling & cutting then turned into flattened plate with desired length.
Process Flow
Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart
| Material | Cold Rolled Steel Coil; Galvanized Steel Coil; Pre-paint Steel Coil | |||||||||||
| Model | 1.5x1300 | 2x1600 | 3x1600 | 6x1600 | 6x2000 | 8x1600 | 8x2000 | 10x2500 | 12x2500 | 16x2500 | 20x2200 | 25x2500 |
| Thickness(mm) | 0.3-1.5 | 0.5-2 | 0.6-3 | 2- 6 | 2- 6 | 3-8 | 3-8 | 3-10 | 4-12 | 5-16 | 6-20 | 6-25 |
| Width(mm) | 500-1300 | 500-1600 | 500-1600 | 800-1600 | 1000-2000 | 800-1600 | 1000-2000 | 1000-2500 | 1000-2500 | 1000-2500 | 1000-2200 | 1000-2500 |
| Cutting Accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Speed (m/min) | 55 | 55 | 45 | 45 | 35 | 35 | 20 | 18 | 15 | 15 | 15 | 12 |
| Weight(T) | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 30 | 30 | 30 | 35 | 35 |
