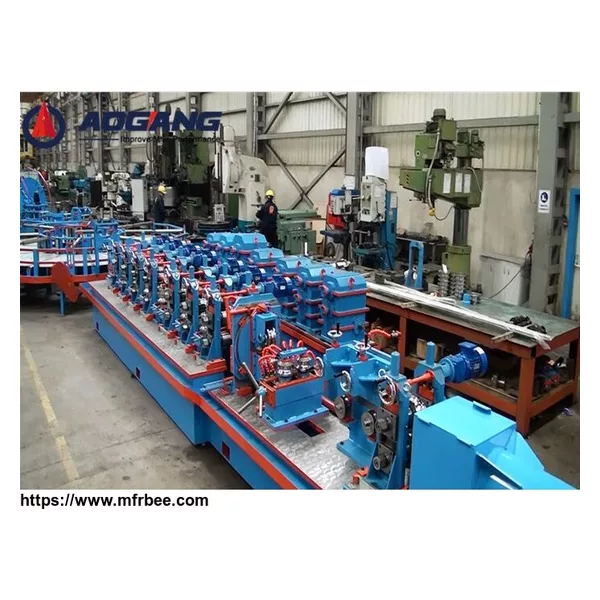

Direct Forming Mill To Square Pipe/Square Welded Tube Machine

Direct Forming Mill To Square Pipe/Square Welded Tube Machine

Product description：

The production of square/rectangular pipes adopts the combined roller.. The roller position will be adjusted by spacer and motor adjustment to realize one set of roller to apply for different size of pipe.

Direct square and rectangular pipe mill feature:

1、Lower production cost: 3-4% material saving

2、Very precise control of the corner radius

3、Frequent production changes without a roll change: possibility to produce small lots of final products

4、Optimized design

5、Very fast changeover

6、Reduced investment: no requirement for different types of rolls and additional floor space for roll storage

7、Very high automation level: minimized operator tuning

Model	Square & Rectangle Pipe	Opening Cold Forming Steel	Speed (m/min)
Diameter(mm)	Thickness (mm)
LW400	□100	40×40~100×100	1.5~5.0	The Same Specifications	20~60
LW600	□150	50×50~150×150	2.0~6.0	10~45
LW800	□200	80×80~200×200	3.0~10.0	10~35
LW1000	□250	100×100~250×250	4.0~12.0	10~35
LW1200	□300	150×150~300×300	4.0~14.0	10~30
LW1400	□350	200×200~350×350	4.0~16.0	10~30
LW1600	□400	250×250~400×400	6.0~18.0	6~20
LW2000	□500	300×300~500×500	8.0~20.0	6~20
