Automatic Coil Processing Line
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 3-6 months
Specifications
Automatic Coil Processing Line
Product description
This series of production line is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
This line is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and it widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This line consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This automatic coil processing line is a integration of mechanical, electrical, hydraulic and pneumatic technology.
| Model | Material width(mm) | Thickness range(mm) | Product width(mm) | Slitting speed(m/min) |
| ZJ600 | 120~600 | 0.5~2.0 | 40~580 | 10~80 |
| ZJ800 | 120~800 | 0.7~3.5 | 40~750 | 10~80 |
| ZJ1300 | 400~1300 | 0.8~4.5 | 60~1250 | 10~60 |
| ZJ1600 | 600~1600 | 2.0~6.0 | 60~1550 | 10~60 |
| ZJ1800 | 900~1800 | 3.0~8.0 | 90~1750 | 10~60 |
| ZJ2000 | 1000~2000 | 6.0~16.0 | 90~1950 | 10~30 |
| ZJ2200 | 1000~2200 | 8.0~20.0 | 90~2150 | 10~20 |

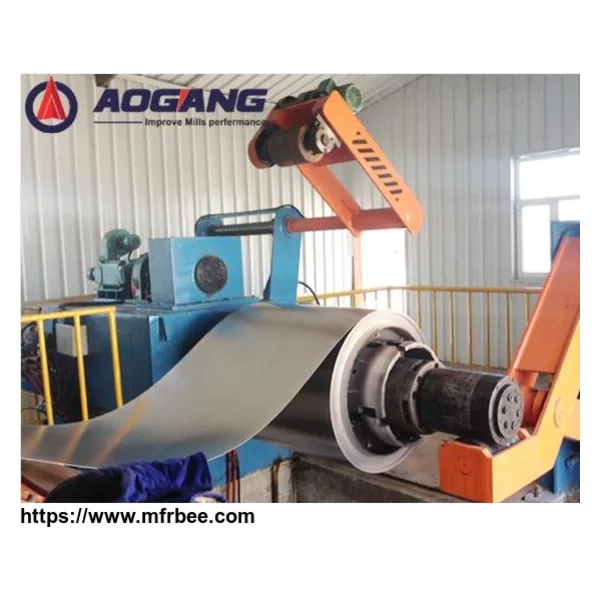

Product image
