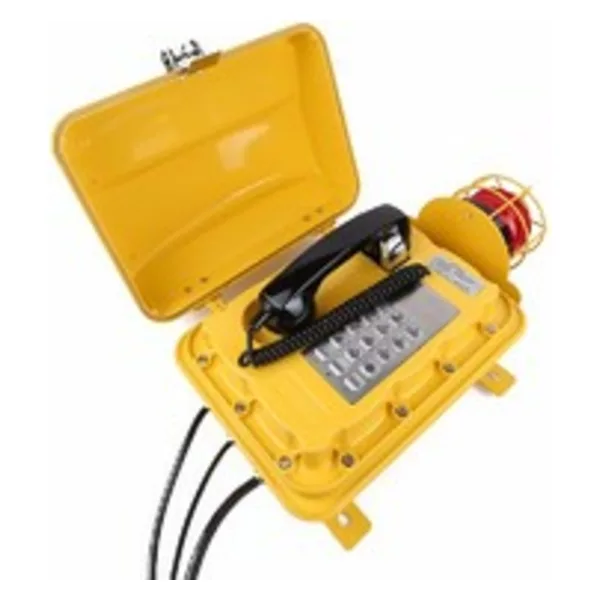

Product Name: waterprooftelephone
Product Type: JWAT303
Communication system:Switchboard
Protection: IP66
Dimensions: 510 × 294 × 206
Material: Aluminumalloy
Color: Yellow ( customized)
1.Widely used in the place of water proof, moisture proof, fire proof, anti-noise, dust proof,antifreeze, such as subway, highways, power plants, gas stations, docks, steel companies, etc.
2.For high-noise places.
1.Whenthe called party's phone rings, thealarm light will blink. That makes userseasilyknow which phone set rings.
2.The phone can form an independent telephone communication system with couplers andprogram-controlled switches.
3.The phone can be connected directly to the telecommunications network.
4.After the composition of the call system, each phone is an independent station. The malfunction of any phone doesn't affect the whole system work.
5.After the composition of the call system, the product has an automatic gain function, and the voice does not vary with distance or telephone quantity.
6.Volumeadjustedofthe amplifier.
7.Patented designedtelephone housingwithwaterproofanddust-prooffunction;waterproof cover, beautiful and practical.
8.Telephone circuits within the integrated circuit using internationally accepted double-sided, with hair the exact number, call clarity, job stability, etc.
9.Aluminumalloyhousing withhigh mechanical strength,andimpact resistance.
10.Hightemperature electrostatic sprayof the shell surface withanti-static abilityandeye-catching color.
11.Key parts of thehandset, the hook, the keyboardare produced by ourowncompany;strict quality controland fast aftersale reaction.
Operating Voltage | AC220V±10%,50Hz |
Standby operating current | ≤0.2A |
Frequency response | 250~3000 Hz |
PA output power | 10~25W |
Protection class | IP66 |
Corrosion grade | WF1 |
Ambient temperature | -40~+60℃ |
Atmospheric pressure | 80~110KPa |
Relative humidity | ≤95% |
Lead hole | 3-PG11 |
Total Weight | 11kg |
Installation | Wall-mounted |
Lights flicker frequency | 1Hz |
Light color | Red (customized) |
1. The callertakes the handsetoffhook, dial the callee's telephone number → callee's telephone rings, whilealarmlightis blinking.
2. The calleehears ringing → pick up the handset to answer the call,bothsidesundernormalconversation.
3.At theend of the call, hang back the handset.
4. The callertakes the handsetoffhook, press "R" keyto redial.
5.There aretwo volume control keystoadjust the speaker volumeaccording to the noise levels.
