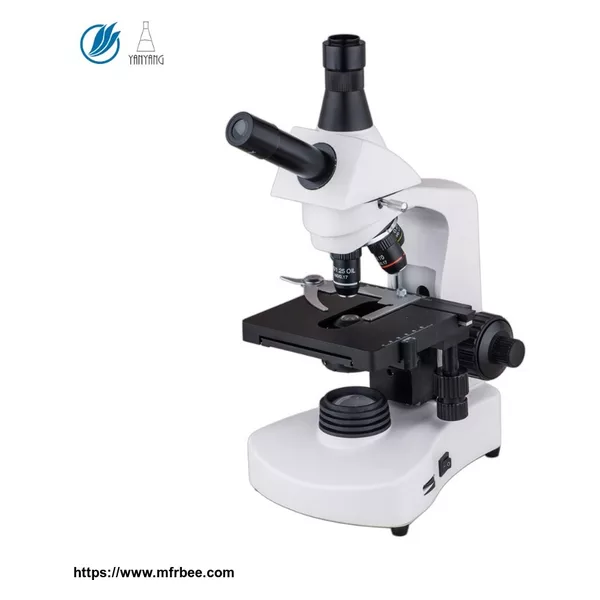

XSP-117YF 40-1000X Binocular Biological Microscope with Achromatic Objective
Product Quick Detail
- FOB Price
- USD $155.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 1pcs each PVC box
- Delivery
- 15 Days
Specifications
| Specification | BMM-1000 | BMM-2000 | |
| Viewing Head | Siedentopfhingedbinocular viewing head, inclined at 30°,360° rotatable,Interpupillary 47-75mm | √ | √ |
| Siedentopfhinged trinocular viewing head, inclined at 30°,360° rotatable,Interpupillary 47-75mm | o | o | |
| Eyepiece | WF10×/18 | √ | |
| P16×/11 | o | ||
| WF10×/20 | √ | ||
| WF15×/16 | o | ||
| Objective | Achromatic objective 4×,10×,40×,100× | √ | |
| Plan achromatic objective 4×,10×,40×,100× | o | ||
| Infinite plan achromatic objective20×,60× | o | ||
| Infinite plan achromatic objective 4×,10×,40×,100× | o | √ | |
| Nosepiece | Quadruple nosepiece | √ | |
| Backward quadruple nosepiece | √ | ||
| Backward quintuple nosepiece | o | ||
| Focusing | Coaxial coarse & fine adjustment,rang 22mm , fine division 0.002mm | √ | √ |
| Stage | Double layers mechanical stage132×142mm, cross travel 75×40mm | √ | |
| Rectangular 230×150mm stage, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob | √ | ||
| Condenser | Abbe condenser NA1.25 with aperture diaphragm | √ | √ |
| Illumination | S-LED Illumination,brightness adjustable | √ | √ |
| 12V/ 20W Halogen lamp, brightness adjustable | o | o | |
| Kohler illumination | o | o | |
| Power Supply | AC110/220V±10%,50/60Hz | √ | √ |
| Accessories | Photo attachment, video attachment, dark field condensor | o | |
| Polarization set, phase contrast kit | o | ||
| Package Size | 323*264*440(BMM-1000), 380*260*510(BMM-2000) | √ | √ |
| Gross Weight | 6.5kg(BMM-1000), 10kg(BMM-2000) | √ | √ |
| Note: √ Standard Outfit, o Optional \ Without this feature |
