Quick Details
Specification | Model | |||||
XSZ-107 | XSZ-107SM | XSZ-107BN | XSZ-N107 | XSZ-107D | ||
Achromatic
Objectives |
4X,10X,40X(S),100X(S,Oil) | • | • | • | • | • |
Eyepiece | Wide Field Eyepiece: WF10X,(WF16X Optional) | • | • | • | • | • |
Viewing head | Monocular Head Inclined at 45° | • | ||||
Compensation Free Binocular Head Inclined at 45° | • | |||||
Sliding Binocular Head Inclined at 45° | • | • | ||||
Compensation Free Trinocular Head | • | |||||
Sliding Trinocular Head | • | |||||
Stage |
Double Layer Mechanical Stage Size140x140mm,
Moving Range 75x45mm |
• | • | • | • | • |
Focusing |
Coaxial Coarse and Fine Adjustment,
Focusing Range 30mm, Focusing Interval 0.002mm |
• | • | • | • | • |
Condenser | Abbe NA=1.25 with Iris Diaphagm& Fillter | • | • | • | • | • |
Iilumination | Halogen Lamp 220V/6V20W or 110V/6V20W | • | • | • | • | • |
FAQ
1. Warranty of the machine?
----Usually warranty is 1 year.
2. When will you delivery the machines?
----Your order will be arranged immediately when we received full payment.
3. Do you have stock?
---Usually delivery time is around 1 week, some models may have stock.
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSZ-107V Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
BINOCULAR MICROSCOPE XSZ-107BN Total Magnification:40X~1600X Eyepieces:WF10X(2PCS), WF16X(2PCS) Objectives:4X, 10X,40XS, 100XS Eyepieces Tube:Binocular 45º. inclined Tube Rotatable 360º. illumination:6V/20W Halogen Lamp Coarse Adjustment Range:30mm Fine Adjustment Range:30mm ...

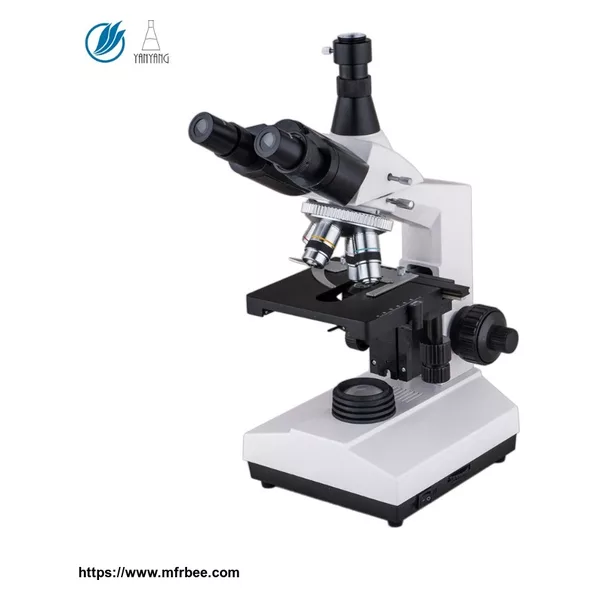

XSZ-107SM Total Magnification 40X~1000X Trinocular Biological Microscope The XSZ-107 Series Biological Microscopes are equipped with stable frame, and it can fit monocular, binocular, trinocular head on it. Double layer mechanical stage, with adjustable long handle and coaxial ...
Quick Details Place of Origin: Jiangsu, China (Mainland) Brand Name: OEM Model Number: XSZ-107VYF Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, ...
