General Specifications
Components | Specifications |
Total Magnification | 40X to 1000X |
Wide Field Eyepiece | WF10X |
Achromatic Objective | 4X/0.10, 10X/0.25, 40XS/0.65, 100XS/0.85 |
Eyepieces Head | Compensation Free Binocular Head 45 Degree Inclined |
Mechanical Tube Length | 160mm |
Filter Diameter | 32mm |
Nosepiece | Quadruple Nosepiece |
Stage | 115mmX125mm |
Condenser | Abbe.NA1.25 |
Diaphragm | Iris Diaphragm |
Coarse/Fine Focal Range | 20mm |
Illumination | 6V 20W Halogen Lamp |
Power | 100-240V, 50/60 Hz |
Net Weight | 5KG |
Gross Weight | 5.5KG |

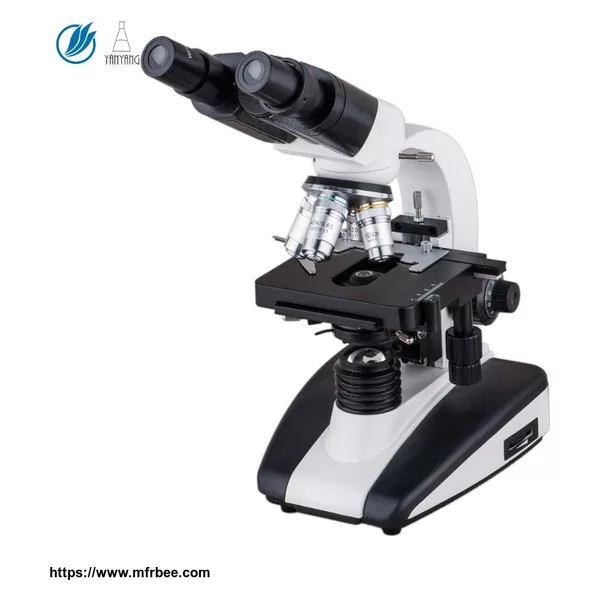

XSP-136E Binocular Biological Microscope
Structure Details
Place of Origin: Jiangsu, China Brand Name: YANYANG Model Number: XSP-300V Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), 100X(spring, oil) ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-200D Theory: Biological Microscope Drawtube: Monocular Viewing head: Compensation Free Monocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Specification Viewing head Compensation Free Monocular Head Inclined at 45 degree Huygens eyepieces Wide field eyepieces WF10X, WF16X(optional) Achromatic objective 4X, 10X, 40X(spring), 100X(spring, oil) Stage Double Layer Mechanical Stage Size 120*125mm Condenser Abbe N.A ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-200V Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-300E Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Specification Viewing head Compensation Free Binocular Head Inclined at 45 degree Huygens eyepieces Wide field eyepieces WF10X, WF16X(optional) Achromatic objective 4X, 10X, 40X(spring), 100X(spring, oil) Stage Double Layer Mechanical Stage Size 120*125mm Condenser Abbe N.A ...
Overview Quick Details Place of Origin: Zhejiang, China (Mainland) Brand Name: ABBEY TECHNOLOGY Model Number: XSP-300V Theory: Biological Microscope Drawtube: Binocular Product name: XSP-300V Biological Microscope Magnification: 40X-1600X Wide Field Eyepiece: WF10X (WF16X ...
Specifications: Eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,WF16X WF20X for optional Objectives:45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil) Magnification:40X-1000X Viewing head:Monocular head, 45° inclined, 360° Rotatable Nosepiece:quardruple nosepiece ...
