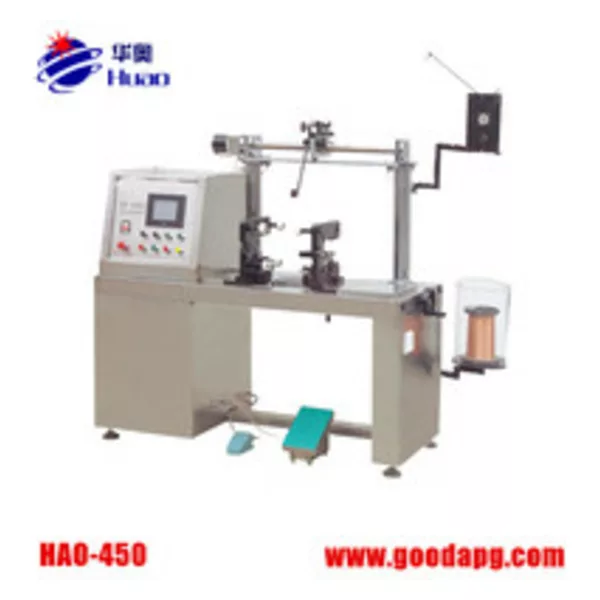

Linear transformer winding machine
Product Quick Detail
- FOB Price
- USD $6,500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- wooden case
- Delivery
- 55 Days
Specifications
Description:
HAO-250 linear transformer winding machine for voltage transformer is a high-precision device independently researched and developed by our company according to the technology requirements of domestic voltage transformer industry.It can wind 0.5—550KV voltage transformer. Linear transformer winding machine using a new mechanical structure and control system and full servo motor and high-precision ball screw control, high efficiency, high precision, the key components are imported products, is the industry's most efficient models.
Features:
1. The rotary speed of the spindle can be increased to 4500RPM, which can effectively increase the production capacity.Linear transformer winding machine has the features of high efficiency. It can reduce the waiting time of the intermediate link greatly.
2. Environmental protection, energy saving, linear transformer winding machine power consumption is only 1.8kW, power consumption is currently only half of the market mainstream models. Using the new generation of heating system developed by our factory, the temperature is continuously stepless adjustable, high thermal efficiency, so that the peak power consumption of hot air gun is only 1000 watts, long life and high efficiency.
3. Hot air gun system without external compressed air, greatly reducing the air consumption of the machine.
4. Winding machines arranged in neat rows.
5. Modular design of the linear transformer winding machine, no worries about future upgrades.
6. Automatic thread trimmer tail, can be added automatic soldering system.
Main Technical Parameters:
| Serial No. | Item | Technical Parameters |
| 1 | Model | HAO-250 |
| 2 | Diameter of windable electromagnetic wire | Φ0.1-3.0mm |
| 3 | Height of machine tool main shaft center | Φ 250mm |
| 4 | Central distance between two tips | 600mm |
| 5 | Winding rotation speed range | 0-1400rpm |
| 6 | Power of machine tool | 1.5KW |
| 7 | Input power of machine tool | 220V±10% |
| 8 | Outline size of machine tool | 1500*600*1450mm |
