Servo HMI Clamping Machine

FOB Price
USD $45,000.00 / Piece
Place Of Origin
china
Minimum Order
1
Packaging
1
Delivery
50WORKDAYS
HMI-1200

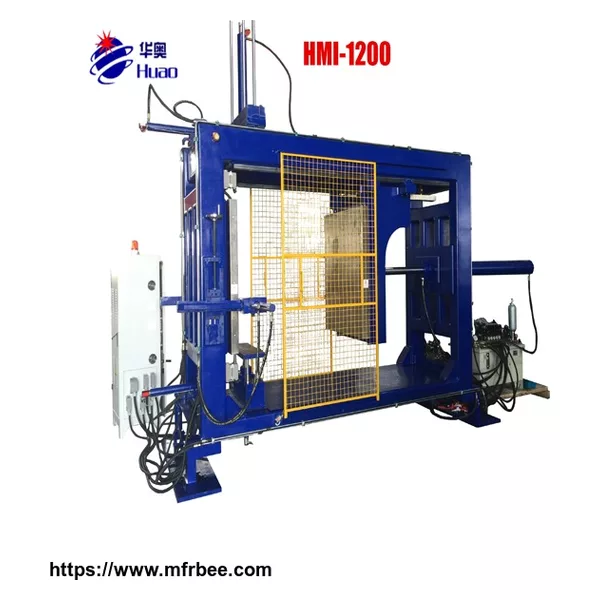

Servo HMI Clamping Machine

Application

This machine is full automatic,Servo and PLC touch screen control.Machine,the clamp plate size can customized,greatly improved efficiency and product quality.Advantages:

1.Servo motor control

2.PLC touch screen Control

3.Can save more than 100 product datas

4.Fully automatic design

Auto start machine&heating clamp plate

Auto setting hydraulic pressure

Auto setting heating temperature

Auto setting valve flow
Machine Technical Parameters

Model No. HMI-1200

clamp plate size 600*800mm

clamp force 18T

Min Max clamp plate stroke 240*1250mm

Upper&lower core puller stroke 760*350mm

Heating power 24KW

hydraulic power pack 7.5kw

Horizontal tilting angle 0-5°

mould load weight 2T

Machine weight 4700KG

Machine dimension 7300*1300*3100mm
Excllent aftersales services:
1. Have 23 year's experience of electric products production technology engineers to your company provide free technology training and help customers make the qualified products.
2. Have rich experience engineer to be responsible for new equipment storting to installation debugging and training.
Competitive ability of production:
Well equipped with complete facilitiesand more than 200 skilled workers and operates round the clock on three shifts,so we can keep the orders completed punctually!
Update the details:
1.Specially designed for transformer of thin film degassing and cycle heating system mixing device, greatly improving the uniformity of mixing and pumping vacuum material.
2.Combination of equipment, moulds, as well as under the engineers constantly summarize and improve the production equipment has superior performance,high efficiency energy saving etc.
3.By APG pressure gel molding process, greatly improving the production efficiency, increased the product surface bright and clean degree, reduce the mold cost, reduces the labor costs of inputs.
4.One-stop services for electric factory,we are manufacturer APG Clamping Machine,APG Mould,Oven for APG Processing,Testing Equipment,Epoxy Resin Material,Silicon Material ,Release Agent,Winding Machine for CT&PT,Foil Winding Machine for Transformer,Laser Marking Machine can marking all kinds of materials,like epoxy resin.
