Double-station APG Clamping Machine

FOB Price
USD $50,000.00 / Piece
Place Of Origin
china
Minimum Order
1
Packaging
1
Delivery
50WORKDAYS
HAPG-860-2

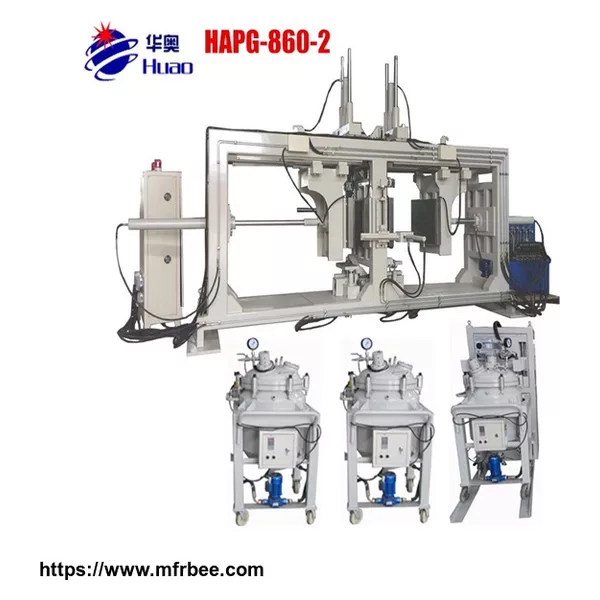

Double-station APG Clamping Machine
Application
This machine is designed with 2 work station,clamp plate size is 600*800mm,support 2 moulds work on same machine,greatly improved the efficiency,it is special used for produce simple designed products,bushing and sensor.
Machine Technical Parameters
Model No. HAPG-860-2
clamp plate size 600*800mm
clamp force 18T
Min Max clamp plate stroke 240*1250mm
Upper&lower core puller stroke 760*350mm
Heating power 24kw
hydraulic power pack 7.5kw
Horizontal tilting angle 0-5°
mould load weight 2T
Machine weight 7500KG
Machine dimension 7300*1300*3100mm
Excllent aftersales services:
1. Have 23 year's experience of electric products production technology engineers to your company provide free technology training and help customers make the qualified products.
2. Have rich experience engineer to be responsible for new equipment storting to installation debugging and training.
Competitive ability of production:
Well equipped with complete facilitiesand more than 200 skilled workers and operates round the clock on three shifts,so we can keep the orders completed punctually!

Update the details:
1.Specially designed for transformer of thin film degassing and cycle heating system mixing device, greatly improving the uniformity of mixing and pumping vacuum material.
2.Combination of equipment, moulds, as well as under the engineers constantly summarize and improve the production equipment has superior performance,high efficiency energy saving etc.
3.By APG pressure gel molding process, greatly improving the production efficiency, increased the product surface bright and clean degree, reduce the mold cost, reduces the labor costs of inputs.
4.One-stop services for electric factory,we are manufacturer APG Clamping Machine,APG Mould,Oven for APG Processing,Testing Equipment,Epoxy Resin Material,Silicon Material ,Release Agent,Winding Machine for CT&PT,Foil Winding Machine for Transformer,Laser Marking Machine can marking all kinds of materials,like epoxy resin.
  • Country:
  • Business Type:
  • Market:
  • Founded Year:
  • Address:
  • Contact:sandy xu
