API Pipe Mill Line ERW508
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- as your demand
- Delivery
- 60Days
Specifications
Description

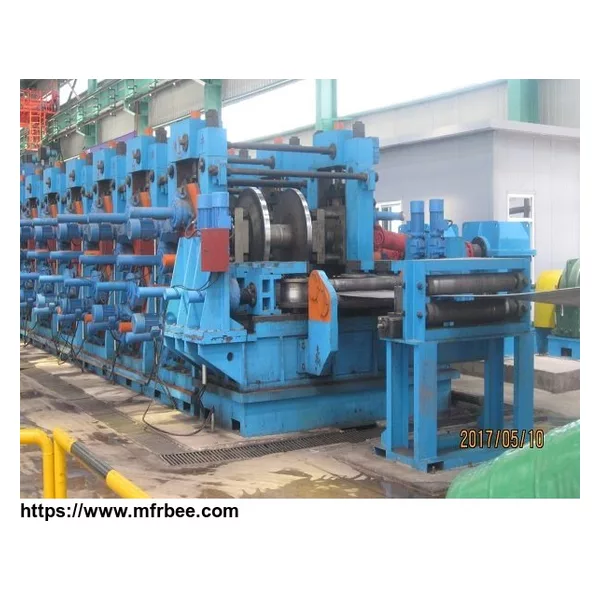

ERW508H.F.Straight Welded Pipe Production Line
ERW508 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 273mm-508 mm in OD and 6.0mm-18.0mm in wall thickness, as well as corresponding square and rectangular pipe.
Products:architectural structure pipes, API pipes, tower footing tubes, automobile beam steel pipe and other products.
Equipment advantages：
√ ZTF forming process save roller up to 60%
√ With direct square forming technology, one set of roller can produce all pipe sizes
√ Electric control and automatic adjustment, high precision,high roller change speed
Basic Technical Information of Welded Pipe Production Line
| Product&yield | Round Pipe | 273mm-508mm Thickness: 6.0mm-18.0mm |
|
Square & rectangle tube |
170mm×170mm -330mm×330mm Thickness: 6.0mm-18.0mm |
|
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 25 m/min | |
| Production capacity | 180,000ton/year | |
| Consumption | Mill installed capacity | 1000 kw |
| Line Area | 300m(length) ×30m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 860mm-1590mm Thickness: 6.0mm-18.0mm | |
| Coil ID | 580-760mm | |
| Coil OD | Max 2300mm | |
| Coil Weight | 35.0t |
| Round pipe | Cold roll forming process | Good roller design |
| ZTF forming process | Save roller up to 60% and realize electric control adjustment | |
| Square& rectangular pipe | General round-to-square process | Stable forming process |
| Round to square with turkshead | Good pipe quality, reach same wall thickness with round pipe | |
| Process of directly forming into square shape | One set of roller can produce all pipe sizes & realize electric control and automatic adjustment |
| Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
| ERW20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 | 120 |
| ERW32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 | 120 |
| ERW50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 | 120 |
| ERW76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 | 120 |
| ERW89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 | 110 |
| ERW114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 | 65 |
| ERW140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 | 60 |
| ERW165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 | 50 |
| ERW219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 | 50 |
| ERW273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 | 45 |
| ERW325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 | 40 |
| ERW377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 | 35 |
| ERW406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 | 30 |
| ERW508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 | 25 |
| ERW660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 | 20 |
| ERW720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 | 20 |
