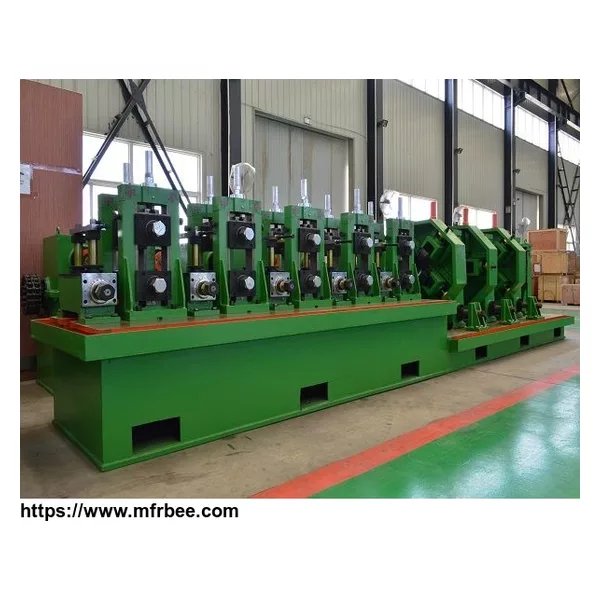

ERW50 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 20mm-50mm in OD and 0.8mm-3.0mm in wall thickness, as well as corresponding square and rectangular pipe.
Products:GI, carbon steel and stainless steel tubes for metallurgy, construction, transportation, machinery and vehicle industries.
√ High production efficiency, line speed can be up to 120m/min.
√ High yielding, the machine works stably at a high speed, which improves the yielding of products.
√ Low wastage, low unit wastage and low production cost.
√ High accuracy, diameter error is only 0.5/100 of the pipe OD.
Product&yield | Round Pipe | 20mm-50mm Thickness: 0.8mm-3.0mm |
Square & rectangle tube | 15mm×15mm -40mm×40mm Thickness: 0.8mm-2.0mm | |
Length | 6m-12m Length Tolerance: ±3mm | |
Production Speed | 20-120 m/min | |
Production capacity | 15,000ton/year | |
Consumption | Mill installed capacity | 65 kw |
Line Area | 50m(length) ×4m (width) | |
worker | 6-8 workers | |
Raw Material | Carbon Steel coil | Q235B(ASTM GR·D,σs 230) |
Width | 65mm-190mm Thickness: 0.8mm-3.0mm | |
Coil ID | 450-520mm | |
Coil OD | Max 1500mm | |
Coil Weight | 1.0-2.0t |
Round pipe | Cold roll forming process | Good roller design |
Square & rectangular pipe | General round-to-square process | Stable forming process |
Round to square with turkshead | Good pipe quality, reach same wall thickness with round pipe |
Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
ERW20 | Ф8-Ф20 | 6x6-15x15 | 0.3-1.5 | 120 |
ERW32 | Ф10-Ф32 | 10x10-25x25 | 0.5-2.0 | 120 |
ERW50 | Ф20-Ф50 | 15x15-40x40 | 0.8-3.0 | 120 |
ERW76 | Ф32-Ф76 | 25x25-60x60 | 1.2-4.0 | 120 |
ERW89 | Ф42-Ф89 | 35x35-70x70 | 1.5-4.5 | 110 |
ERW114 | Ф48-Ф114 | 40x40-90x90 | 1.5-4.5 | 65 |
ERW140 | Ф60-Ф140 | 50x50-110x110 | 2.0-5.0 | 60 |
ERW165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 | 50 |
ERW219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 | 50 |
ERW273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 | 45 |
ERW325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 | 40 |
ERW377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 | 35 |
ERW406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 | 30 |
ERW508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 | 25 |
ERW660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 | 20 |
ERW720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 | 20 |
High frequency welded pipe mill Line is mainly used for making ERW welded steel pipes. ERW is short for Electric Resistance Welding. At present, ERW pipe occupies a decisive position in the field of conveying pipe in the world. Our high-frequency erw steel pipe mill is featured ...
