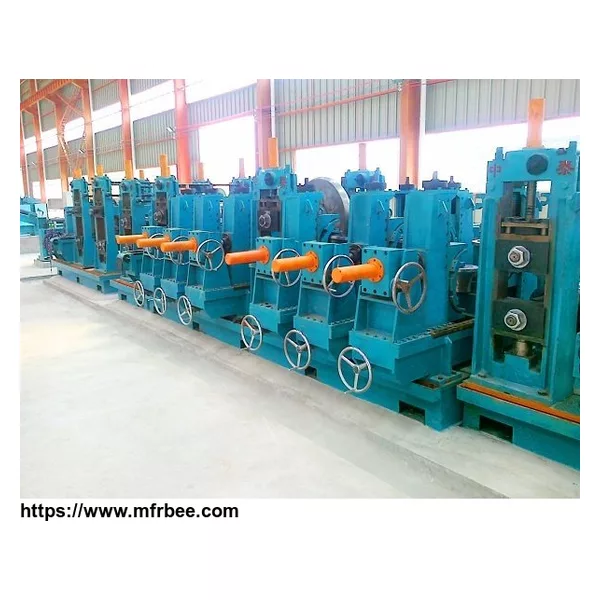

Multi-functional Pipe Mill
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- as your demand
- Delivery
- 60 Days
Specifications
Description
This kind of mill can produce round pipe,square and rectangular pipe and some of abroach cold rolled section steel
-
ZTF Forming TechnologyUsed In ProducingRound Pipe
- Do not need to change moulds in breakdown section, saving about 60% cost on the rollers
- Roller changing time is cut down greatly, breakdown section does not need to change moulds and just adjust is ok. And it can cut-down producing period.
- Release labor intensity.
- Roll forming technology, the caliber is different and propitious for X70,N80 steel strip.
- The steel strip is distorted and beared more reasonably, to reduce the rub between the strip and roller, and also reduce the waste of the roller.
- It is easier to restore and adjust roller.
-
Directly Square Forming TechnologyIn
ProducingSquare&Rectangular Pipe
- Compare with round into square&rectangle forming way,this way is better for the shape at the edge of cross section,comparatively, semi-diameter of inner arc is Small,and the brim is flat,outlook is regular.
- the whole line load is low ,especially the sizing parts.
- The width of steel strip is small about 2.4-3% than round into square & rectangle,it can save the consume of raw material.
- It adapt the multi-point bending way, avoid the axial force and side abrasion
- It adapt the combined type roller on the most of the stands,it realize that one set of roller can produce dozens of square&rectangle pipe with different specification,it decrease the store of roller,low the cost about 80% on roller, Fast the bankroll turnover, short the time one new product design.
- Produce Parts Of Abroach Cold Rolled Section Steel
| Model |
Round pipe mm |
Square pipe mm |
Thickness mm |
Working spead m/min |
| ERW165 | Ф76-Ф165 | 60x60-130x130 | 2.0-6.0 | 50 |
| ERW219 | Ф89-Ф219 | 70x70-170x170 | 2.0-8.0 | 50 |
| ERW273 | Ф114-Ф273 | 90x90-210x210 | 3.0-10.0 | 45 |
| ERW325 | Ф140-Ф325 | 110x110-250x250 | 4.0-12.7 | 40 |
| ERW377 | Ф165-Ф377 | 130x130-280x280 | 4.0-14.0 | 35 |
| ERW406 | Ф219-Ф406 | 170x170-330x330 | 6.0-16.0 | 30 |
| ERW508 | Ф273-Ф508 | 210x210-400x400 | 6.0-18.0 | 25 |
| ERW660 | Ф325-Ф660 | 250x250-500x500 | 6.0-20.0 | 20 |
| ERW720 | Ф355-Ф720 | 300x300-600x600 | 6.0-22.0 | 20 |
