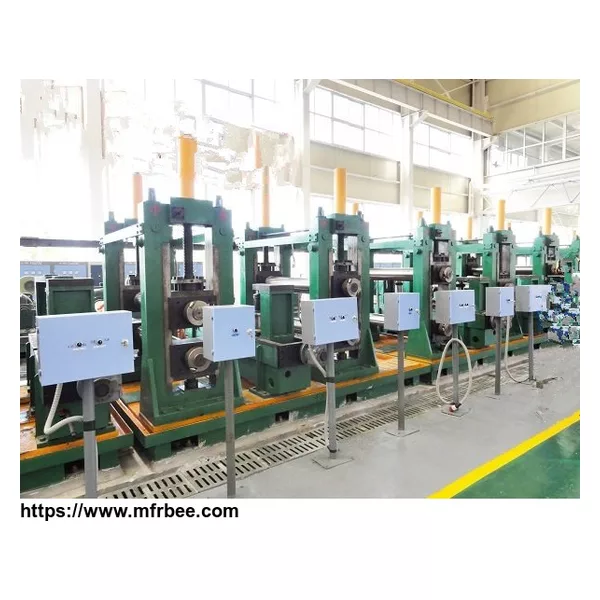

Cold Roll Forming Machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- as your demand
- Delivery
- 30 Days
Specifications
Description
Abroach Cold Rolled Section Steel Production Line
| Model |
Strip width mm |
Size mm |
Thickness mm |
Forming Speed m/min |
| Lw100 | 40-100 | 10x10-25x25 | 0.5-2.0 | 20-80 |
| LW200 | 80-200 | 20x20-50x50 | 1.0-3.0 | 20-80 |
| LW400 | 200-400 | 50x50-100x100 | 2.0-5.0 | 20-60 |
| LW600 | 240-600 | 60x60-150x150 | 2.0-7.0 | 20-60 |
| LW800 | 320-800 | 80x80-200x200 | 2.5-10.0 | 20-40 |
| LW1050 | 400-1050 | 100x100-250x250 | 3.0-12.7 | 15-30 |
| LW1250 | 480-1250 | 120x120-300x300 | 3.0-14.0 | 10-25 |
| LW1400 | 600-1400 | 150x150-350x350 | 4.0-16.0 | 8-20 |
| LW1600 | 800-1600 | 200x200-400x400 | 6.0-18.0 | 8-15 |
| LW2000 | 1000-2000 | 250x250-500x500 | 6.0-20.0 | 8-15 |
| LW2200 | 1100-2200 | 280x280-550x550 | 6.0-22.0 | 8-15 |
