Diamond-Strut Safety Grating Accessories
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- China(Mailand）
- Minimum Order
- 1
- Packaging
- 2
- Delivery
- 15 Days
Specifications
Versatile Diamond-Strut safety grating planks have a wide range of applications - stair treads
A full range of accessories are provided. Diamond anchors, anchor plate and splice plates make the installation simple and quick. However, these accessories should be ordered separately.
Diamond Anchors
Diamond-shaped anchors are perfectly suitable for diamond opening safety grating
| Items | Number |
|---|---|
| Diamond washer: 2-1/4" × 3/4" | 1 |
| Carriage bolt: 5/16" - 18 | 1 |
| Flat Washer: 5/16" | 1 |
| 5/16" - 18 Hex Nut | 1 |
| Material: Mill galvanized plain steel or stainless steel Type 304. |
DSA-01: Diamond washer.
DSA-02: Diamond washer details.
Anchor plate
Anchor plates are used to fasten planks side-by-side on I-bream or other cross members. Place J-bolts in the diamond openings opposite each other and the openings are just next to the plank edge. No field drilling is required and the installation is very quick and simple.

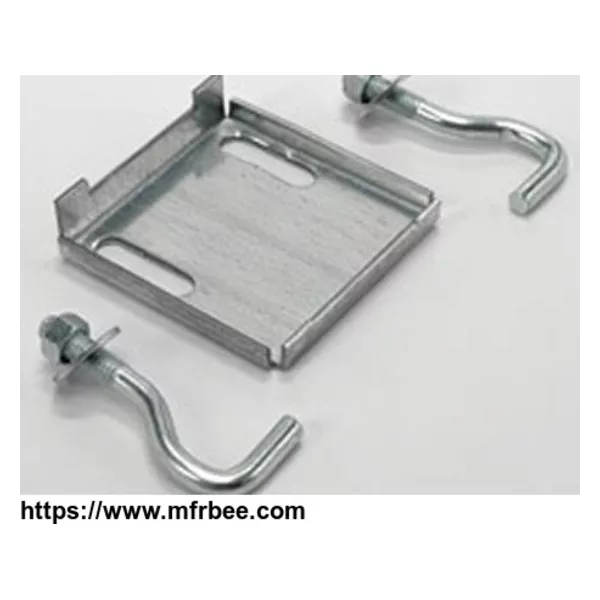

DSA-03: J-bolt anchor plate.
| Items | Number |
|---|---|
| Anchor Plate: 3-1/2" × 3-1/2" | 1 |
| J-bolts: 3/8" - 16 | 2 |
| Flat washer: 3/8" | 2 |
| Hex Nut: 3/8" - 16 | 2 |
| Material: mill galvanized plain steel or stainless steel Type 304. |
Walkway Splice Plate
Walkway splice plates attached to side channels connect plank gratings
| Items | Number |
|---|---|
| Splice plates: 4-1/2" × 30" | 2 |
| Hex bolts: 1/2" - 13 × 1-1/4" | 32 |
| Hex nuts: 1/2" - 13 | 32 |
| Washers: 1/2" | 32 |
| Plate thickness: 12 ga. Finish: Mill-galvanized. |
| Items | Number |
|---|---|
| Splice plates: 4" × 7" | 2 |
| Hex bolts: 7/16" - 14 × 1-1/4" | 16 |
| Hex Nuts: 7/16" - 14 | 16 |
| Washer: 7/16" | 16 |
| Plate thickness: 10 ga. Finish: Mill-galvanized. |
DSA-04: 30 inches long splice plate drawing.
DSA-05: 30 inches long walkway splice plate.
DSA-06: 7 inches splice plate.
