Interlock Grating Accessories
Product Quick Detail
- Place Of Origin
- China(Mailand）
- FOB Price
- USD $100.00 / Piece
- Minimum Order
- 1
- Packaging
- 2
- Delivery
- 15 Days
Specifications
Accessories for Interlock safety grating
Include hold-down clamp, hold-down clip and J-bolts. These accessories can satisfy with most applications. Besides accessories installation, welding is another common method of fastening safety grating to cross-members. Hence, accessories are sold separately.
Hold-down Clamp
Hold-down clamp is used to secure interlock safety plank grating
| Items | Number |
|---|---|
| Hex head cap screw: 5/16" - 18 | 1 |
| Flat washer: 5/16" | 1 |
| Hex nut: 5/16" - 18 | 1 |
| Material: Mill galvanized plain steel or stainless steel Type 304. |
IGA-01:Hold-down clamps.
IGA-02:Hold-down clip.

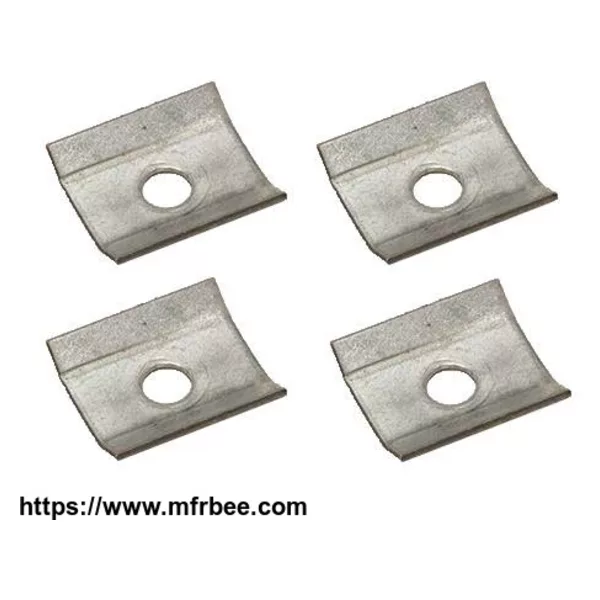

Hold down clip
Hold-down clip is also designed for fastening interlocking safety plank grating
Anchor J-bolts.
Anchor J-bolt
J-bolt is used to secure the FM interlocking safety planks to I-beam or other anchoring cross-members. Field drilling is required.
| Items | Number |
|---|---|
| J-bolt: 5/16"-18 × 2-13/16". | 1 |
| Flat washer: 5/16". | 2 |
| Hex nuts: 5/16" - 18 | 2 |
| Material: mill galvanized plain steel or stainless steel Type 304. |
