Interlocking Stair Treads

Place Of Origin
China(Mailand)
FOB Price
USD $100.00 / Piece
Minimum Order
1
Packaging
2
Delivery
15 Days

Interlocking safety grating stair treads

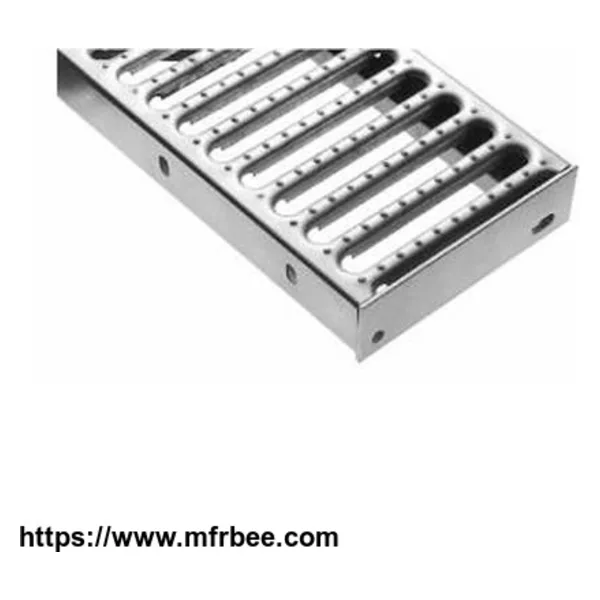

IST-1:Interlock Grating Stair Treads.


IST-2:Carrier Plate drawing.

Table-1: Interlocking Safety Grating Carrier Plate Specifications
Item A
Tread Width
D
Dimension
F
Dimension
G
Dimension
For stair treads without nosing
ICP-1 6" 2" 2" 1-1/8"
ICP-2 9" 5" 2" 1-1/8"
ICP-3 12" 8" 2" 1-1/8"
For stair treads with nosing
ICPN-1 7-1/2" 4-1/2" 2-1/2" 1-1/8"
ICPN-2 10-1/2" 7" 2-1/2" 1-1/8"
ICPN-3 13-1/2" 7" 2-1/2" 1-1/8"

Product descriptions:

  • Item:Interlocking grating stair treads.
  • Width:3", 4", 6", 9" & 12".
  • Channel depth:2-1/2".
  • Length:12', 20', 24' or cut to size.
  • Material:Galvanized steel.
  • Gauge:14, 16 and 18.
  • Flange:Female-Female, Female-Male, Male-Male.
  • Accessories:hold-down clamp, hold-down clip, J-bolts are sold separately.

Note:Channel depth of 1-1/2", 3" and 4" should be specially ordered.

Features & benefits:

  • Available in diverse dimensions for special requirements.
  • Fast and simple installation.
  • Not as aggressive as diamond strut safety stair treads.
  • More economical cost.

IST-3:Industrial stair treads grating.


IST-4:Temporary Grating Bridge.
