Diamond-Strut Walkways

Minimum Order
1
FOB Price
USD $100.00 / Piece
Place Of Origin
China(Mailand)
Packaging
2
Delivery
15 Days

Walkway safety gratingplays importance in industrial working area. They often be adjacent to the equipment or suspended in high position. Once the workers slips or falls, they may hurt themselves or cause the equipment to stop. Hence,diamond strut walkway grating

Diamond-Strut walkway safety grating fabricated with integral toe-boards provides non-slip, economical and maintenance-free options for long span walkways. 10-Diamond diamond strut grating (24 inches wide) is the standard option for mostindustrial walkways

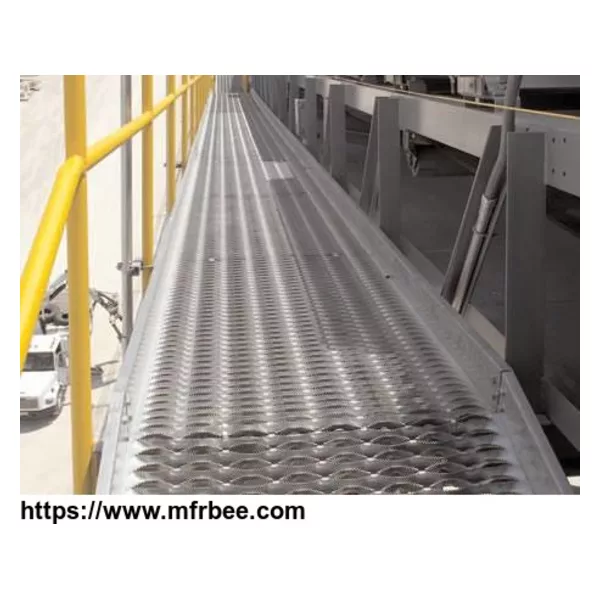

DSW-02: Diamond-Strut Walkway Grating Dimensions.

Product description:

  • Item: Diamond strut walkway.
  • Width: 24", 10-Diamond.
  • Depth: 4-1/2".
  • Length: 10' or 12' or cut-to-size.
  • Material options:
    • Mill-galvanized plain steel: 12 & 14 ga.
    • Aluminum 5052-H32: 0.08" or 0.100".
    • HRPO plain steel: 12 & 14 ga.
    • Stainless steel 304: 16 ga.
  • Accessories: splice plates are provided separately.

Features & benefits:

  • Serrated diamond opening grips soles tightly in all directions and in all slippery conditions.
  • Openings allow for quick passage of fluids, snow, mud and detergents.
  • Easy-to-handle lightweight planks make simple and quick installation.
  • Ideal for suspended walkways or conveyor catwalks.

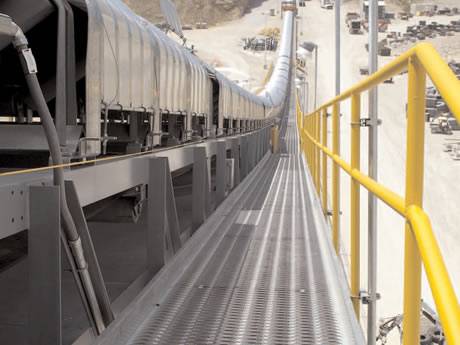

DSW-03: Conveyor Catwalks.


DSW-04: 8-Diamond walkway safety grating.
