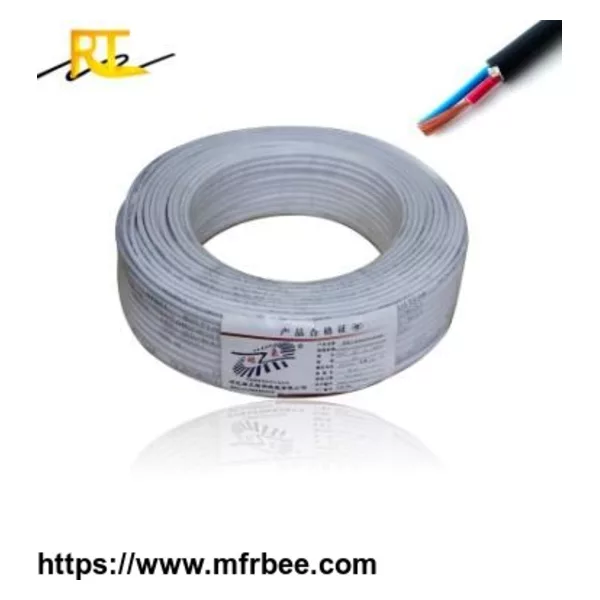

Copper Conductor Flexible Electrical Wire
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Ruitian or OEM
- Place of Origin:China
- Model Number :RVV
- Conductor Material :Copper
- Insulation Material :PVC
- Type :300/500V
- Number of Conductors :single
Description
English name: Copper Conductor Flexible Electrical Wire
Application
Wiring for electrical appliances, smaller size electric tools, instruments of various meters, and motorized lighting system. construction, heating housing and building.
Standard
IEC 60227,IEC 60228,IEC 60332,GB/T 5023,BS 6500,BS 6004,VDE 0281,0282 ,UL 83, AS/NZS 5000.2 etc.
*We can also design and produce for special application requirement.
Type and description
| Serial number | Type | Description |
| 1 | 60227 IEC 01(BV) |
Single core rigid conductor unsheathed cable for general purposes(H07V-U or H07V-R) |
| 2 | 60227 IEC 02(RV) |
Single core flexible conductor unsheathed cable for general purposes(H07V-K) |
| 3 | 60227 IEC 05(BV) |
Single core 70℃ solid conductor unsheathed cable for internal wiring(H05V-U or H05V-R) |
| 4 | 60227 IEC 06(RV) |
Single core 70℃ flexible conductor unsheathed cable for internal wiring(H05V-K) |
| 5 | 60227 IEC 07(BV-90) |
Single core 90℃ solid conductor unsheathed cable for internal wiring(H07V-U or H07V-R) |
| 6 | 60227 IEC 08(RV-90) |
Single core 90℃ flexible conductor unsheathed cable for internal wiring(H07V-K) |
| 7 | 60227 IEC 10(BVV) | Light PVC sheathed cable(NYY or NYM) |
| 8 | 60227 IEC 42(RVB) | Flat unsheathed flexible wire |
| 9 | 60227 IEC 52(RVV) |
Light PVC sheathed flexible wire (H03VV-F、H03VV2-F) |
| 10 | 60227 IEC 53(RVV) |
Common PVC sheathed flexible wire (H05VV-F、H05VV2-F) |
| 11 | BV | Copper conductor PVC insulated wire(H07V-U or H07V-R) |
| 12 | BLV | Aluminum conductor PVC insulated wire |
| 13 | BVR | Copper conductor PVC insulated flexible cable(H07V-R) |
| 14 | BVV |
Copper conductor PVC insulated sheathed circular cable(NYY or NYM) |
| 15 | BLVV | Aluminum conductor PVC insulated and sheathed round cable |
| 16 | BVVB | Copper conductor PVC insulated and sheathed flat cable |
| 17 | BLVVB | Aluminum conductor PVC insulated sheathed flat cable |
| 18 | NMD | Copper conductor PVC/Nylon Insulated PVC Jacked flat cable |
| 19 | RVS | Twisted copper conductor PVC insulated flexible cable for conection |
| 20 | AVP | Copper conductor PVC insulated wire with shied for installation |
| 21 | RVP | Copper conductor PVC insulated flexible wire with shield |
| 22 | RVVP |
Copper conductor PVC insulated, shielded, PVC sheathed flexible cable |
NOTE:
1)Cores number series ar,1，2 ,3，4 and 5.
2)We can produce “Flame-Retardant Series”, “Fire-Resistant Series”, “Low Smoke Halogen Free (LSHF/LSOH) Series”, “Low Smoke Low Halogen (LSLH) Series”, etc.
Performance in line with IEC60332,IEC 61034,IEC60754 requirements.
|
|
Packing :
1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
Ruitian Wire&Cable is always insist on “Living by Quality, Develop by Credit” and aimed at creating biggest value for customers. Ruitian Wire&Cable is always ready to serve you.
Certificates
- CCC :2009010105327462
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :As your demands
- Delivery Lead Time :within 10 days after receiving your payment
- Supply Ability :1 million meters per month
- Country: China (Mainland)
- Business Type:
- Market:WORLD WIDE
- Founded Year:2008
- Address:
- Contact:Frank Xu Xu
