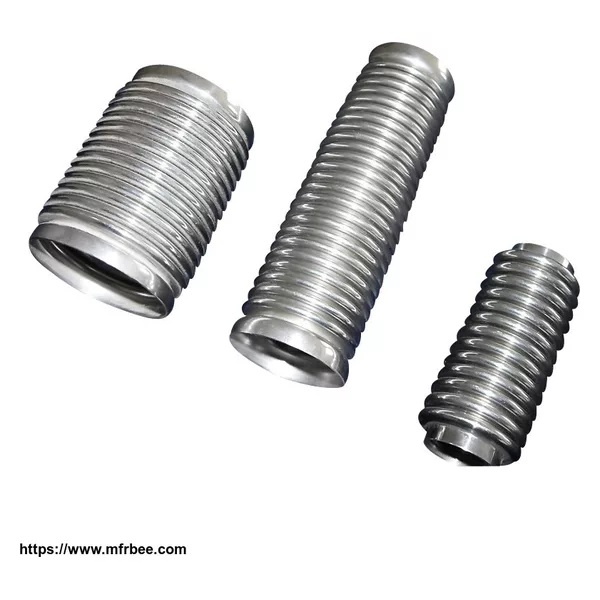

Hydroformed Metal Bellows
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- carton
- Delivery
- 25 Days
Specifications
Single-layer and Multi-layer design
High flexibility and longer cycle life for the bellows and bellows assembly
The cycle life is over 5000 cycles under nominal pressure and movement
Individual require of the bellows and bellows assemblies with flanges can be met by the especial design technique
High flexibility and longer cycle life for the bellows and bellows assembly
The cycle life is over 5000 cycles under nominal pressure and movement
Individual require of the bellows and bellows assemblies with flanges can be met by the especial design technique
| Item | Specifications |
| Application Range | The products could be used on bellows-type cut off valve, bellows-type gate valve and bellows-type regulating valve. |
| Nominal Diameter Of Valve (mm) | DN15 - DN250 |
| Nominal Pressure Class (MPa) | PN1.6, PN2.5, PN4.0, PN6.4, PN10.0, PN14.0 The bellows are designed to withstand external pressure, and the design pressure class is one and a half times of that of nominal pressure class. |
| Operation Temperature | -196ºC - 300ºC |
| Movement | The design movement ( compression ) is larger than the minimum movement while turning on the valve. |
| Cycle life | The cycle life is over 5000 cycles under nominal pressure and movement. |
| Material | SS304, SS316L, SS321 |
