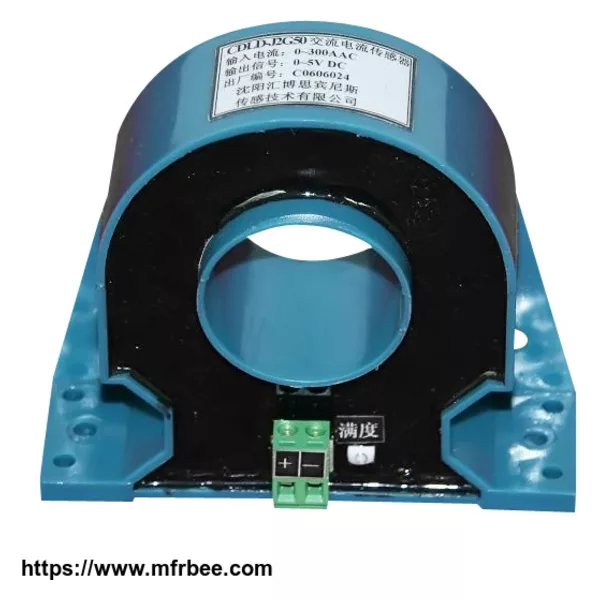

Passive AC Current Transducer
Product Quick Detail
- FOB Price
- USD $20.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- carton
- Delivery
- 15 Days
Specifications
Straight-through current input mode, high isolation ability
Passive without power supply, high performance-price ratio
High reliability
Linear measuring range: 0 - 120% of nominal input
Frequency: 25Hz - 5kHz, suitable for the current measure in range of medium frequency and power frequency
Isolation: >3kV DC 1min
Overload: 3000% of nominal input, 60 seconds.
Mean Time Between Failure(MTBF): >50000 hours.
| Model | Accuracy | Input |
Output Unit |
Output |
Responding Time |
Working Temperature (ºC) |
| CDLD-J1G20-XXA/ | 0.2 |
Ф20~35mm through
hole:50A;100A;150A;200A;250A;300A;400A;500A;600A Value of "XX" collected form the range above. |
VG | 5V | 200ms | -40~80 |
| CDLD-J2G20-XXA/ | 0.5 | VZ | 5V | 200ms | -40~80 | |
| CDLD-J1G30-XXA/ | 0.5 | VG | 5V | 200ms | -40~80 | |
| CDLD-J2G30-XXA/ | 0.5 | VZ | 5V | 200ms | -40~80 | |
| CDLD-J1G50-XXA/ | 0.5 | VG | 5V | 200ms | -40~80 | |
| CDLD-J2G50-XXA/ | 0.5 | VZ | 5V | 200ms | -40~70 |
