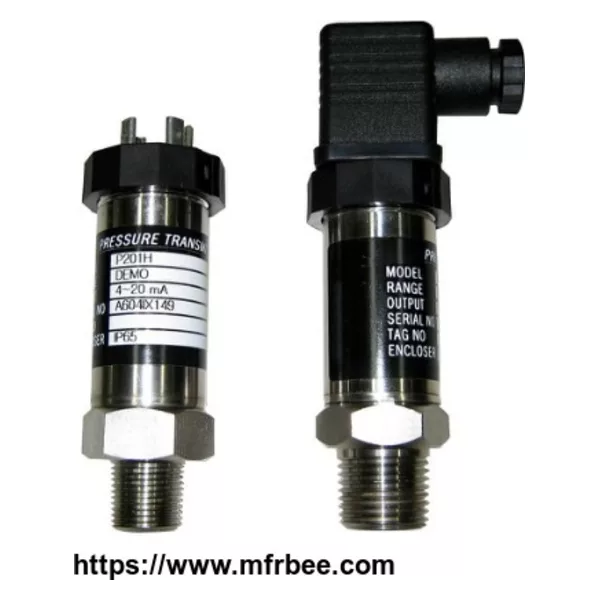

Silicon Diffusion Pressure Transmitter (HB2126)

The HB2126 transmitter is the first choice for applications requiring high accuracy in different environment. Our MEMS based technology provides stability over a wide temperature range with excellent repeatability and minimal hysteresis. The diaphragm and body are 316 stainless steel as standard. Available with Hirschman connector or Cable directly. Choice of pressure port, either M20× 1.5 or G1/4 male.
Features
Construction is 316 stainless steel
Current and Voltage Output versions±
0.2% long term stability per annum
Ranges from 0.35 bar to 1000 bar, Gauge or Absolute
Advanced digital compensation of both temperature and non-linearity
Cost effective

Specifications
01	Pressure Range	0.35bar, 1bar, 2.5bar, 6bar, 10bar, 16bar, 25bar, 60bar, 100bar, 250bar, 400bar, 600bar
02	Overload Capacity	1.5 times scale
03	Accuracy	±0.25%F.S, ±0.5%F.S
04	Zero Temperature Coefficient	±0.015%F.S/ºC(Typical)
05	Sensitivity Temperature Coefficient	±0.015%F.S/ºC(Typical)
06	Power Supply	24VDC
07	Output	4~20mA
08	Operating Temperature	-40ºC~+120ºC
09	Compensated Temperature	0~+70ºC(Typical), -40ºC~+100ºC(optional)
10	Long Term Stability	±0.1%F.S/ year
11	Anti-exploding Performance	Intrinsic safety against exploding ExiaII BT6 (HB9500)
12	Pressure Connection	M20×1.5, G1/4 male, Customized (Customer should provide connector drawing)
13	Electrical Connection	Hirschman Connector, Hummel water-proof connector, Cable Connection
Notes	1.Accuracy includes hysteretic, repeatability and nonlinearity (the Least Square Method) 2.Without other notices, all results are attained with the reference temperature 25ºC

HB2126 Pressure Transmitter Order Information
	Code	Measuring Type
A	Absolute Pressure
G	Gauge Pressure
	Code	Pressure Range
0003	0~0.35bar
0010	0~1bar
0025	0~2.5bar
0060	0~6bar
0100	0~10bar
0160	0~16bar
0250	0~25bar
0600	0~60bar
1000	0~100bar
2500	0~250bar
4000	0~400bar
6000	0~600bar
	Code	Accuracy
A1	±0.25%F.S
A2	±0.5%F.S
	Code	Compensated Temperature
T1	0~70ºC
T2	-40~100ºC
T0	Customer requirement
	Code	Electrical Connector
EC1	Hirschman Connector
EC2	Cable Directly
EC0	Customer requirement
	Code	Pressure Connector
PC1	M20×1.5
PC2	G1/4 male
PC0	Customer requirement

Example:
HB2126-G-0600-A2-T1-EC1-PC2 is a HB2126 pressure transmitter with 600 bar gauge pressure range, accuracy is ±0.5F.S, compensated temperature is 0~70ºC, electrical connector is Hirschman connector, pressure connector is G1/4 male.
