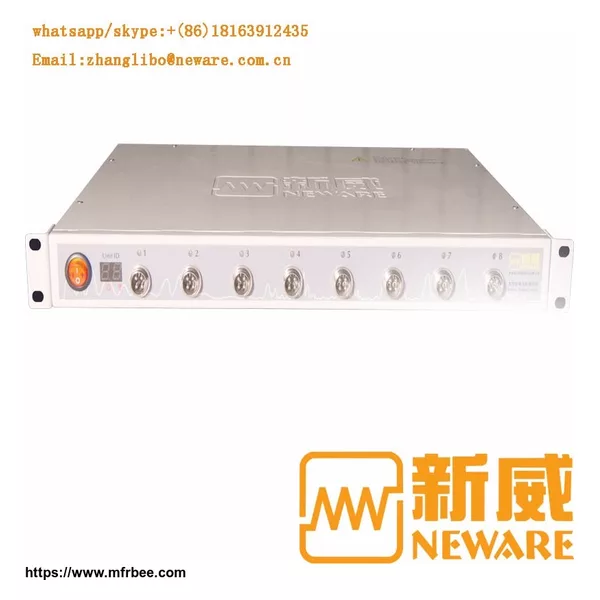

Neware AA/AAA Rechargeable Hearing Aid Batteries Tester

Neware is a leading manufacturer of battery testing system manufacturer for 20 years in China.
Our equipment provide DCIR,pulse,cycle life,capacity test and so on.
Technical Specification:

BTS-5V50mA

Battery Testing System

Model:

BTS-

5

V

50

mA

Material Code:

CT-4008

-5V50mA

-

N

-

S1

Description

Product Specification

AC Input

AC 110V±10% 50Hz

Power

3544

mW

Resolution

AD: 16bit; DA: 16bit

Input Impedance

≥1MΩ

Voltage

Measuring Range

25mV~5V

Discharge Min Voltage

10mV

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Current

Range

Charge: 0.1mA~50mA Discharge: 0.1mA~50mA

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Power

Output Power Per Channel

250mW

Stability

± 0.1% of FS

Time

Rise Time

1ms (0~Full Range)

Step Time

≤ (365*24) hour/step

Time Format 00:00:00:000 (h:min:s:ms)

Data Acquisition

Intervals

Time interval Δt:(100ms~60000s)

Voltage interval ΔU: (10mV~5V)

Current interval ΔI: (0.1mA~50mA)

Frequency

10Hz

Charge

Modeof Operation

CCC, CVC, CC & CVC, CPC

End Conditions

Voltage, Current, Test Time, Capacity

Discharge

Modeof Operation

CCD, CPD, CRD

End Conditions

Voltage, Current, Test Time, Capacity

Pulse

Charge

CCC

Discharge

CCD

Min Pulse Width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Cycles

65535

Steps

254

Nested Function

Max three levels of loops

Protective Function

Power-off data protection

Off-line Operating

User-defined safety(upper and lower)tolerance of current, voltage and delay time

Channel Features

Independent pairs of closed loop for constant current source and constant voltage source

Channels

Independent control

Detection and Sampling

4-wire Connecting

Noise Density

<85dB

Data Management

MYSQL Database

Communication Means

TCP/IP Protocol

Export Formats

EXCEL, TXT, Graph

Communication Interface

Ethernet Port

Number of Channels Per Cabinet

8

Operating Environment

Description

Product Specification

Operating Temperature

0ºC~40ºC

Storage Temperature

-10ºC~50ºC

Operating Humidity

≤70% RH

Storage Humidity

≤80% RH

Warraty: 1 year
Delivery: 7days after deposit
