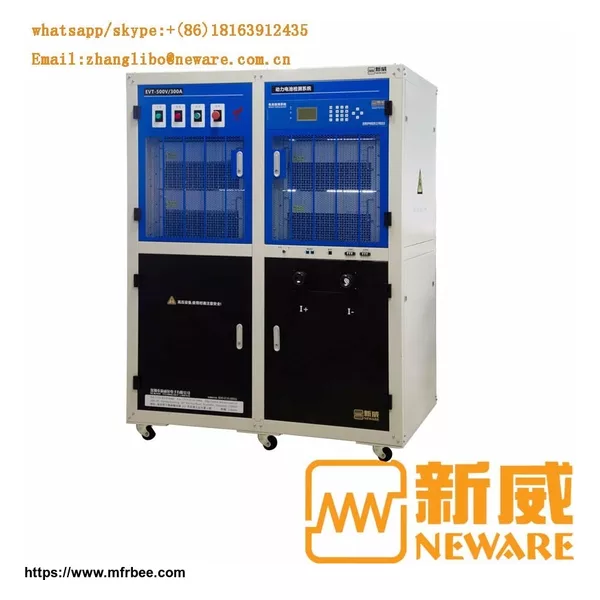

IGBT-100V200A | ||||||||||
Model: | IGBT- | 100 | V | 200 | A | Battery Testing System | Material Code: | CE-7002 | - | 100V200A |
Description | Product Specification | |||||||||
AC Input | AC 380V±10% 50Hz | |||||||||
Single-phase Power | 13 | KW | ||||||||
Single-phase Current | 68 | A | ||||||||
Input Power | 44 | KW | ||||||||
Resolution | 100ms | |||||||||
Voltage | Range | 500mV~100V | ||||||||
Accuracy | ± 0.1% of FS | |||||||||
Stability | ±0.1% of FS | |||||||||
Current | Range | Charge: 10A~200A Discharge: 10A~200A | ||||||||
Accuracy | ±0.1% of FS | |||||||||
Stability | ± 0.1% of FS | |||||||||
Power | Output Power Per Channel | 20KW | ||||||||
Stability | ±0.2% of FS | |||||||||
Time | Rise Time | 10ms(10%FS~90%FS) | ||||||||
Step Time | ≤ (365*24) hours/step | Time Format 00:00:00:00 (h:min:s:ms) | ||||||||
Aux Channel (optional ) |
Aux Input | Temperature,Voltage | ||||||||
Temperature Range | -25ºC~110ºC | |||||||||
Temperature Accuracy | ±1ºC | |||||||||
Temperature Resolution | 0.1ºC | |||||||||
Voltage Range | -5v~5v | |||||||||
Voltage Accuracy | ± 0.1% of FS | |||||||||
Data Acquisition | Intervals | Time Interval Δt: (1s~60000s) | ||||||||
Voltage Interval ΔU: (5V~100V) | ||||||||||
Current Interval ΔI: (10A~200A) | ||||||||||
Frequency | 10Hz | |||||||||
Charge | Modes of Operation | CCC, CVC, CC&CVC | ||||||||
End Conditions | Main Channel: Voltage, Current, Test Time, Capacity | |||||||||
Aux Channels: Temperature,Voltage | ||||||||||
Discharge | Modes of Operation | CCD, CPD | ||||||||
End Conditions | Main Channel: Voltage, Current, Test Time, Capacity | |||||||||
Aux Channels: Temperature,Voltage | ||||||||||
Cycle | Cycles | 1~65535 | ||||||||
Steps | 254 | |||||||||
Nested Function | Max three levels of loops | |||||||||
Protective Function | Power-off data protection | |||||||||
Off-line Operating | ||||||||||
Main Channels: user-defined safety (upper and lower) tolerance of current, voltage and delay time | ||||||||||
User-defined safety (upper and lower) tolerance of temperature and voltage | ||||||||||
Channel Features | Independent pairs of closed loop for constant current source and constant voltage source | |||||||||
Energy Regeneration | Regenerative Discharge Energy to Power Grid | |||||||||
Channels | Independent control | |||||||||
Noise Density | <85dB | |||||||||
Data Management | MYSQL Database | |||||||||
Communication Protocol | TCP/IP | |||||||||
Export Formats | EXCEL, TXT, Graph | |||||||||
Communication Interface | Ethernet port | |||||||||
|
||||||||||
Description | Product Specification | |||||||||
Number of Channels Per Cabinet | 2 | |||||||||
Assignable Aux Voltage Per Channel | Max 248 | |||||||||
Assignable Aux Voltage Per Channel | Max 248 | |||||||||
Dimensions W*D*H (mm) | 1350*733*1800 | |||||||||
Operating Environment | ||||||||||
Description | Product Specification | |||||||||
Operating Temperature | 0ºC~40ºC | |||||||||
Storage Temperature | -10ºC~50ºC | |||||||||
Operating Humidity | ≤70% RH | |||||||||
Storage Humidity | ≤80% RH |
