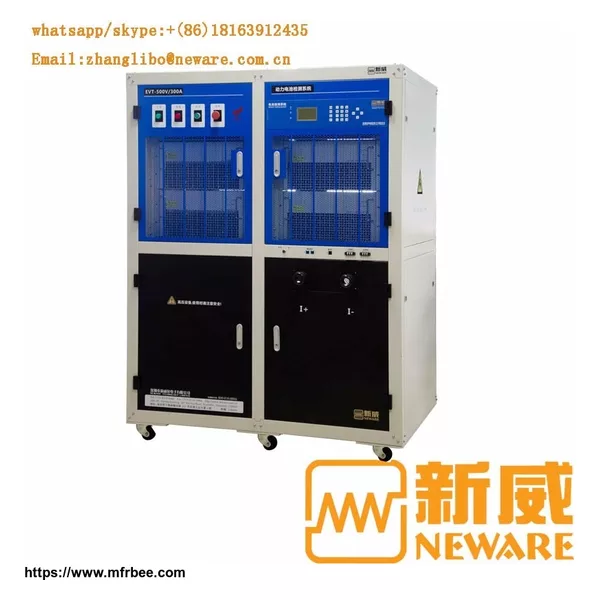

Neware Golf Car Flooded Batteries Tester with Canbus

FOB Price
USD $30,000.00 / Piece
Place Of Origin
shenzhen
Minimum Order
1
Packaging
wooden box
Delivery
15 Days
Order cllassification:
The price for the battery tester above only for reference, pls contact me.
About the measurement:According to the different range of voltage and current for each type batteries, pls contact me.
About the clamps:Based on the type of the batteries
BTS-5V6A is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 30 mA to 6A, up to 5V.
Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.
Technical Specification:
IGBT-200V300A
Model: IGBT- 200 V 300 A Battery Testing System Material Code: CE-7001 - 200V300A
Description Product Specification
AC Input AC 380V±10% 50Hz
Single-phase Power 20 KW
Single-phase Current 101 A
Input Power 67 KW
Resolution 100ms
Voltage Range 1000mV~200V
Accuracy ± 0.1% of FS
Stability ±0.1% of FS
Current Range Charge: 15A~300A Discharge: 15A~300A
Accuracy ±0.1% of FS
Stability ± 0.1% of FS
Power Output Power Per Channel 60KW
Stability ±0.2% of FS
Time Rise Time 10ms(10%FS~90%FS)
Step Time ≤ (365*24) hours/step Time Format 00:00:00:00 (h:min:s:ms)
Aux
Channel
(optional )
Aux Input Temperature,Voltage
Temperature Range -25ºC~110ºC
Temperature Accuracy ±1ºC
Temperature Resolution 0.1ºC
Voltage Range -5v~5v
Voltage Accuracy ± 0.1% of FS
Data Acquisition Intervals Time Interval Δt: (1s~60000s)
Voltage Interval ΔU: (10V~200V)
Current Interval ΔI: (15A~300A)
Frequency 10Hz
Charge Modes of Operation CCC, CVC, CC&CVC
End Conditions Main Channel: Voltage, Current, Test Time, Capacity
Aux Channels: Temperature,Voltage
Discharge Modes of Operation CCD, CPD
End Conditions Main Channel: Voltage, Current, Test Time, Capacity
Aux Channels: Temperature,Voltage
Cycle Cycles 1~65535
Steps 254
Nested Function Max three levels of loops
Protective Function Power-off data protection
Off-line Operating
Main Channels: user-defined safety (upper and lower) tolerance of current, voltage and delay time
User-defined safety (upper and lower) tolerance of temperature and voltage
Channel Features Independent pairs of closed loop for constant current source and constant voltage source
Energy Regeneration Regenerative Discharge Energy to Power Grid
Channels Independent control
Noise Density <85dB
Data Management MYSQL Database
Communication Protocol TCP/IP
Export Formats EXCEL, TXT, Graph
Communication Interface Ethernet port

Warraty: 1 year
Delivery: 7days after deposit
