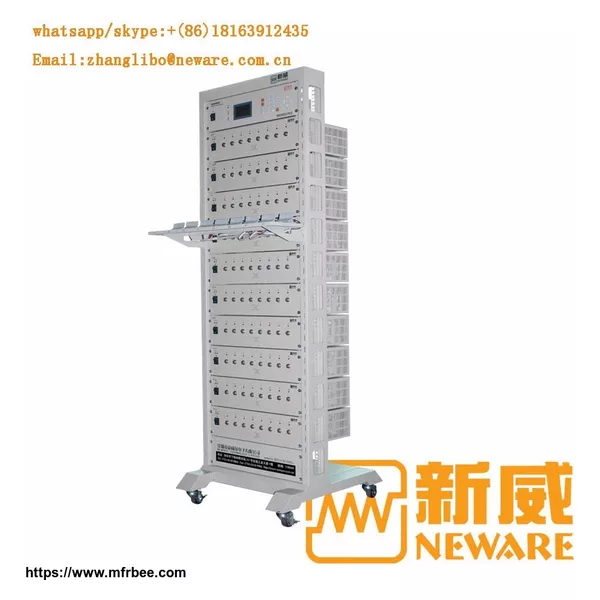

Neware 18650/21700/26650 Cylindrical Lithium Battery Tester
Product Quick Detail
- Place Of Origin
- shenzhen
- Minimum Order
- 1
- Packaging
- 10pcs each wooden box
- Delivery
- 15 Days
Specifications
The price for the battery tester above only for reference, pls contact me.
About the measurement:According to the different range of voltage and current for each type batteries, pls contact me.
About the clamps:Based on the type of the batteries
BTS-5V6A is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 30 mA to 6A, up to 5V.
Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.
Technical Specification:
| BTS-5V6A | Battery Testing System | |||||||||||
| Model: | BTS- | 5 | V | 6 | A | Material Code: | CT-4008 | -5V6A | - | NA | - |
|
| Description | Product Specification | |||||||||||
| AC Input | AC 220V±10% 50Hz | |||||||||||
| Power | 425 | W | ||||||||||
| Resolution | AD: 16bit; DA: 16bit | |||||||||||
| Impedance Input | ≥1MΩ | |||||||||||
| Voltage | Measuring Range | 25mV~5V | ||||||||||
| Discharge Min Voltage | 2.5V | |||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||
| Stability | ± 0.1% of FS | |||||||||||
| Current | Range | Charge: 30mA~6A Discharge: 30mA~6A | ||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||
| Stability | ± 0.1% of FS | |||||||||||
| Power | Output Power Per Channel | 30W | ||||||||||
| Stability | ± 0.2% of FS | |||||||||||
| Time | Rise Time | 20ms (10%FS~90%FS) | ||||||||||
| StepTime | ≤ (365*24) hour/step | Time Format 00:00:00:000 (h:min:s:ms) | ||||||||||
| Data Acquisition | Intervals | Time interval Δt: (100ms~60000s) | ||||||||||
| Voltage interval ΔU: (10mV~5V) | ||||||||||||
| Current interval ΔI: (12mA~6A) | ||||||||||||
| Frequency | 10Hz | |||||||||||
| Charge | Modes of Operation | CCC, CVC, CC & CVC, CPC | ||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||
| Discharge | Modes of Operation | CCD, CPD, CRD | ||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||
| Pulse | Charge | CCC | ||||||||||
| Discharge | CCD | |||||||||||
| Minimum Pulse Width | 500ms | |||||||||||
| Automated Switch | Automated switch from charge to discharge for each pulse | |||||||||||
| End Condition | Voltage, Test Time | |||||||||||
| Cycle | Cycles | 65535 | ||||||||||
| Steps | 254 | |||||||||||
| Nested Function | Max three levels of loops | |||||||||||
| Protective Function | Power-off data protection | |||||||||||
| Off-line Operating | ||||||||||||
| User-defined safety (upper and lower) tolerance of current, voltage and delay time | ||||||||||||
| Reverse-connecting protection | ||||||||||||
| Channel Features | Independent pairs of closed loop for constant current source and constant voltage source | |||||||||||
| Channels | Independent control | |||||||||||
| Detection and Sampling | 4-wire Connecting | |||||||||||
| Noise Density | <85dB | |||||||||||
| Data Management | MYSQL Database | |||||||||||
| Communication Means | TCP/IP Protocol | |||||||||||
| Exports Formats | EXCEL, TXT, Graph | |||||||||||
| Communication Interface | Ethernet Port | |||||||||||
| Number of Channels Per Cabinet | 8 | |||||||||||
| Operating Environment | ||||||||||||
| Description | Product Specification | |||||||||||
| Operating Temperature | 0ºC~40ºC | |||||||||||
| Storage Temperature | -10ºC~50ºC | |||||||||||
| Operating Humidity | ≤70% RH | |||||||||||
| Storage Humidity | ≤80% RH |
Warraty: 1 year
Delivery: 7days after deposit
Contact information:
Emily Zhang
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Asia,Europe,Americas
- Founded Year:1998
- Address:F15, Tower 3, Excellence City, No. 128, Zhongkang Rd, Shenzhen, Guangdong, China
- Contact:Emily Zhang
