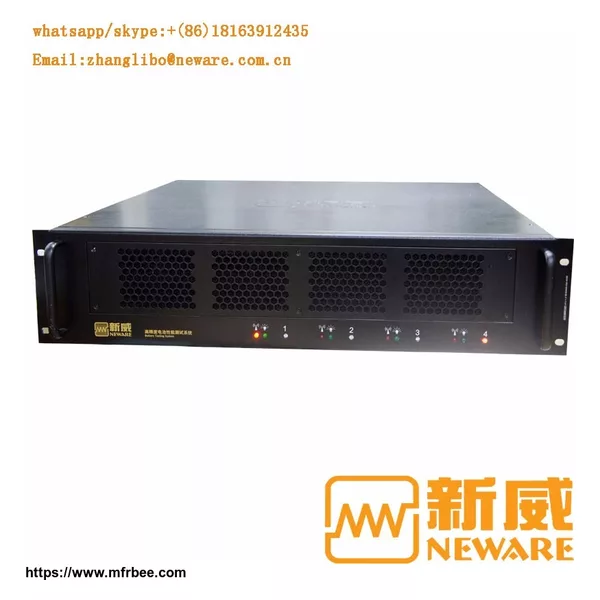

Neware High Precision Charge&Discharge Battery Tester with GSM Test

FOB Price
USD $40,000.00 / Piece
Place Of Origin
shenzhen
Minimum Order
1
Packaging
10pcs each wooden box
Delivery
15 Days
Neware High Precision Battery Testing Equipment for Battery Materials Research And Pouch Cell Test
Technical Specification:
Description Specification
AC Input AC 220V +10% / -20%, 50Hz;
Resolution AD:16bit;DA:16bit
Impedance input ≥ 500MΩ
Input power 250 w
Channel Feature Independent pairs of closed loops for constant current source and constant voltage
source
Channel control mode Independent control
Voltage Measuring Range Charge:0.7V~5V;Discharge:0.7V~5V

Discharge Min Voltage 0.7 V(0.5M wire length)

Accuracy ± 0.02% of FS

Stability ±0.005% of FS
Current Measuring Range Range1: 0.1uA---150uA


Range2:140uA---5mA


Range3:4.5mA---150mA


Range4: 140mA---5A

Accuracy ± 0.02% of FS


Range1: ± 30nA


Range2:± 1uA


Range3:± 30uA


Range4: ± 1mA

Stability ±0.005% of FS
Power Max Output Power Per
Channel
25W

Stability ± 0.01% of FS
Time Rise Time <= 100μS (10% to 90% or 90% to 10%);

Step Time Range >=10ms
Data
acquisition
Intervals Time△t:>=1ms


Voltage△U:>= 1mV


Current△I:>= 100nA

Frequency 1000Hz(Continuous charging and discharging mode) /Individual pulse recording (GSM pulse mode)
Charge Charge Mode CC, CCCV, CV, CP, CR

End Conditions Voltage, Current, △t, Capacity, Energy, Power
Discharge Discharge Mode CC, CP, CR, Pulse

End Conditions Voltage, Current, △t, Capacity
Pulse Charge CC

Discharge CC

Min. pulse width 400μs

Pulses counts Up to 16 changes in each pulse

End conditions Voltage, △t
DCIR Can be calculated by software
Cycle Max cycles 1~65535

Max steps in each cycle 255

Max cycle nest 4
Protection Safety protection Power-off data protection


Off-line operation mode


User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.;
Data acquisition method Kelvin connection
Database MySQL
Communication TCP/IP(100M Ethernet)
Data export EXCEL2003,2010,TXT
Communication Interface Ethernet port
Channels 4
Dimensions W*D*H:443*615*125(mm)
Clamps 204 Air-plug, Polymer or alligator available
Operating system Windows 7 64Bit

Application:
GSM test,pulse test,capacity test,cycle life test,DCIR test,charge&discharge test,Electrochemistry Research and so on.
Warraty: 1 year
Delivery: 7days after deposit
Contact information:
Emily Zhang
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia,Europe,Americas
  • Founded Year:1998
  • Address:F15, Tower 3, Excellence City, No. 128, Zhongkang Rd, Shenzhen, Guangdong, China
  • Contact:Emily Zhang
