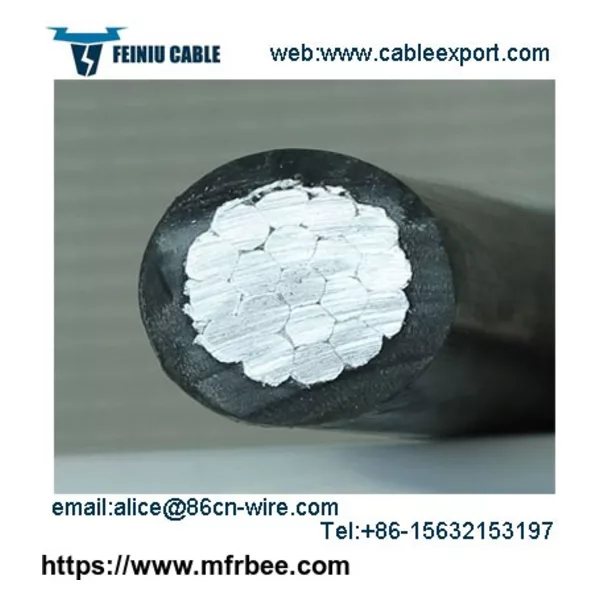

Overhead Insulated Cable

Overhead Insulated Cable(Aluminium,Steel Core)

o.	Type Specification	Conductor size n/mm	Conductor approx. Outside Diameter mm	Inner shield thickness mm	Insulation thickness mm	Outside diameter of cable mm	Bending radius	Cable weight kg/km	Ω MΩ·km	DC resistance at 20℃ ≤Ω/km	Rated tensile strength≥N	soak for one hour, withstand voltage kV	Allowable ampacity A
laying	running
1	JKLYJ-10	7/1.37	3.80	0.70	3.40	12.00	240	264	77.5	1500	3.080	—	18	56
2	JKLYJ-16	7/1.75	4.80	0.70	3.40	13.00	260	286	124.0	1500	1.910	—	18	87
3	JKLYJ-25	7/2.24	6.00	0.80	3.40	14.40	288	320	193.6	1500	1.200	3762	18	118
4	JKLYJ-35	7/2.57	7.00	0.80	3.40	15.40	308	340	233.2	1500	0.868	5177	18	149
5	JKLYJ-50	7/3.06	8.30	0.80	3.40	16.70	334	368	290.8	1500	0.641	7011	18	180
6	JKLYJ-70	14/2.57	10.00	0.80	3.40	18.40	368	405	365.7	1500	0.443	10354	18	226
7	JKLYJ-95	19/2.57	11.60	0.80	3.40	20.00	400	440	495.2	1500	0.320	13727	18	276
8	JKLYJ-120	36/2.21	13.00	0.80	3.40	21.40	428	471	543.6	1500	0.253	17399	18	320
9	JKLYJ-150	30/2.57	14.60	0.80	3.40	23.00	460	506	648.7	1500	0.206	21033	18	366
10	JKLYJ-185	37/2.57	16.20	0.80	3.40	24.60	492	541	761.9	1500	0.164	26732	18	423
11	JKLYJ-240	37/2.92	18.40	0.80	3.40	26.80	536	590	946.1	1500	0.125	34679	18	503
12	JKLYJ-300	61/2.57	20.60	0.80	3.40	29.00	580	638	1130.0	1500	0.100	43349	18	583
